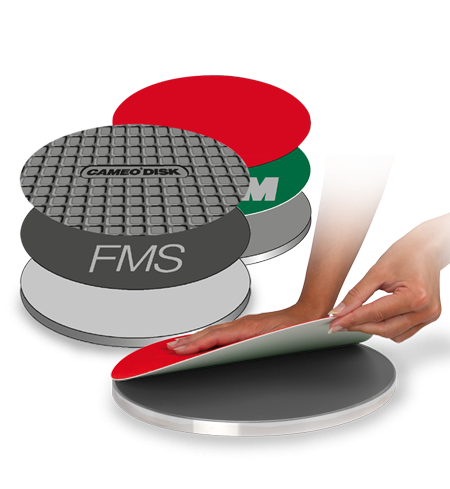

Fixing accessories

The discs and plates FAS®2, FMS®,FIX LAM® and XLAM®4 allow you to easily fix all your discs whether self-adhesive or not, for simplified manipulation.

Fixing accessories

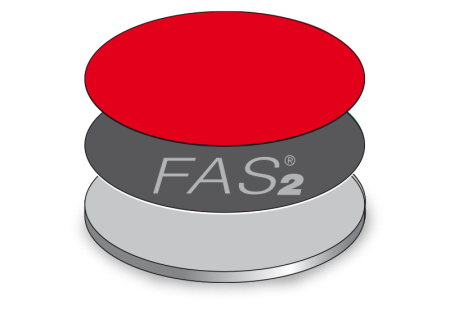

FAS®2 discs

The solution for adhesive fixing

The FAS®2 facilitates the sticking and unsticking of all self-adhesive supports (abrasive papers, grinding and polishing discs). It avoids the time consumming cleaning of plates dirtied by glue remains whenever a self-adhesive disc is removed.

The patented material comprising the FAS®2 system allows combining the softness and regularity of the abrasion of a flexible coating with the inherent flatness obtained with a metal support.

Download data sheet

FAS®2 discs

FAS®2 has a self-adhesive side to be stuck on the base plate of the machine directly, available in all diameters, its low thickness (1 mm) guarantees the initial inherent flatness of the master plate.

 Characteristics
 Qty Ø in mm Ref.
Self-adhesive backside    1 200 05 FAS20 20
1 250 05 FAS20 40
1 300 05 FAS20 50
1 400 05 FAS20 80

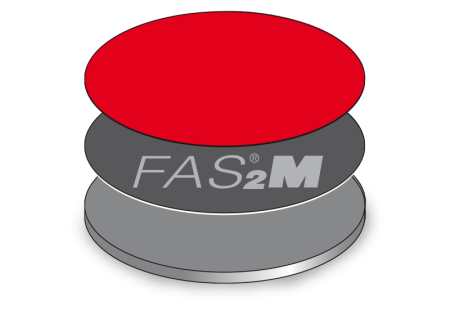

FAS®2-M discs

FAS®2-M: suitable for machines equipped with magnetic base plates or when the LAM PLAN FMS disc is used.
The FAS®2-M has 2 usable sides, it is therefore reversible, when one side is damaged the other can be used.

 Characteristics
 Qty Ø in mm Ref.
Magnetic backside 1 200 05 FAS2M 20
1 250 05 FAS2M 40
1 300 05 FAS2M 50
1 400 05 FAS2M 80

FMS® discs & plates

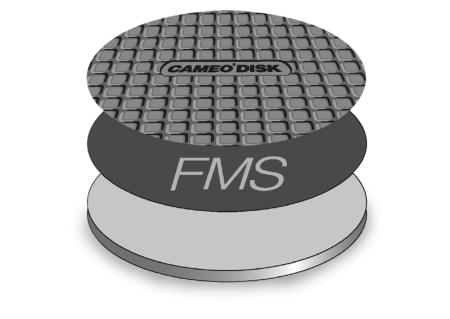

The fixing system by magnetic attachment

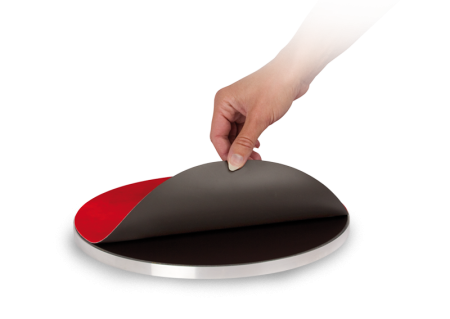

FMS® discs

The FMS® magnetic disc sticks to all type of support plates.

 Characteristics
 Qty Ø in mm Ref.
Self-adhesive backside 1 200 08 82801 10
1 250 08 82803 10
1 300 08 82804 10
1 400 08 82807 10

FMS® plates

It is also available in an FMS plate and adapts to all existing machines.

 Characteristics
 Qty Ø in mm Ref.
Aluminium plate equipped
with a FMS® adaptable disc
on polishing machine
1 200 08 82801 00
1 250 08 82803 00
1 300 08 82804 00
1 400 08 82807 00

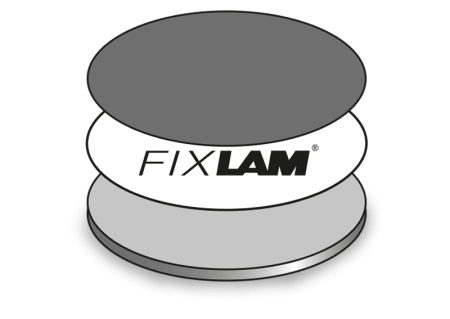

FIX LAM® discs and plates

The repositionable adhesive system

The FIX LAM® allows you to maintain non-adhesive abrasive papers thanks to a repositionable adhesive surface.

FIX LAM® discs

 Characteristics
 Qty Ø in mm Ref.
Adhesive backside 5 200 05 40000 20
5 250 05 40000 40
5 300 05 40000 60

FIX LAM®-M discs

 Characteristics
 Qty Ø in mm Ref.
Magnetic backside 5 200 05 4000M 20
5 250 05 4000M 40
5 300 05 4000M 60

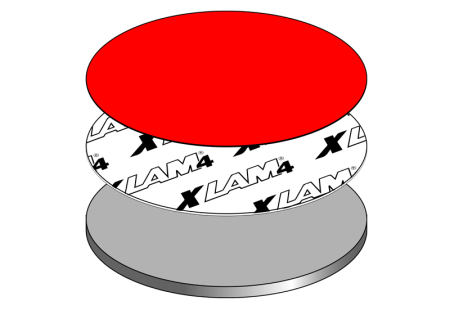

XLAM 4 discs NEW

New fixing for polishing discs Serie X.

The XLAM 4 is an innovative product for fixing non-self adhesive polishing discs on metallographic polishing machines by contact. The XLAM 4 is a thin disc to be fixed on the machine plate. Its special surface enables the adherence of XLAM series discs without self adhesive, so polishing supports are quickly and effortlessly interchangeable. Polishing discs can easily be stored and reused.
The XLAM 4 enables easy transition between the different polishing steps and so reduces the time needed for sample preparation.

Download data sheet

XLAM 4 discs

 Characteristics
 Qty Ø in mm Ref.
Adhesive backside 1 200 04 XLAM4 20
1 250 04 XLAM4 40
1 300 04 XLAM4 50
1 400 04 XLAM4 80

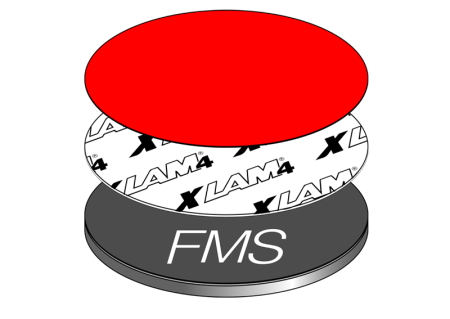

XLAM 4-M discs

 Characteristics
 Qty Ø in mm Ref.
Magnetic backside 1 200 04 XLAM4M20
1 250 04 XLAM4M40
1 300 04 XLAM4M50
1 400 04 XLAM4M80
