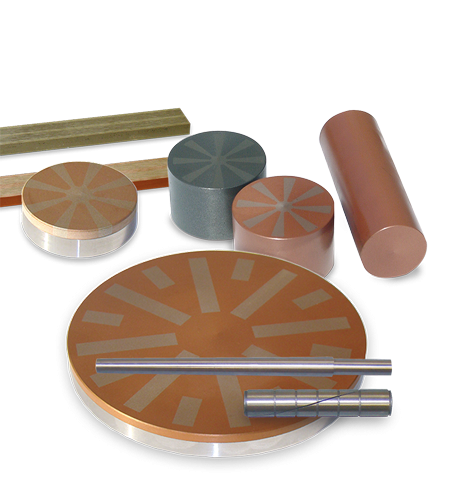

Manual lapping rods

Lapping rods M.M.®, shapes As A, B, C et Lapidaries

Manual lapping rods

Lapping rods M.M.®

Immediately shape your rods in all form, from patented M.M.® preliminary shape containing no abrasive.
lamplan rodagepolissage supports rodoirslapidoirsApplications

For internal and external lapping, and super finishing of spherical, conical and cylindrical parts and many other shapes.

The solution

LAM PLAN offers an original, functional and adapted solution; it responds to the requirements of surface conditions difficult to attain with tools or grinding wheels. LAM PLAN delivers its rods in preliminary shape condition. The user finalises the form of his choice.

A fast machining using common tools (never a grinding wheel) allows adapting the rods to the shapes of the parts to be lapped and then proceeding with the lapping- polishing ion machines or manually in some cases. This technique is possible thanks to the LAM PLAN M.M.® which combines rods and free diamond abrasives.

The technique

The LAM PLAN M.M.® rods consists of two different materials in terms of mechanical, physical and resistance characteristics. The composition and arrangement of the two components associated with the usage of specific diamond abrasive is the base of the patented LAM PLAN M.M® system and its effectiveness.

The advantages of the LAM PLAN M.M.® system associated with Bio DIAMANT®

The LAM PLAN M.M.® system uses special abrasives. A chemical binder allows homogeneous, stable distribution of calibrated diamond grains, while preventing any settling phenomenon. As soon as the rod starts rotating under the effect of the applied pressure and the passage on the two different materials, the diamond grains move and fix alternatively. This causes a phenomenon of significant acceleration of these particles ensuring a high stock removal. Penetrating very low and for a very short time in the rod’s metal mass, each diamond particle always presents an edge opposite to the part to be machined.

All the cutting edges work under an over speed. The abrasive’s efficiency is therefore better and more sustainable.
In addition, thanks to the use of diamond, the rod coating does practically not wear out (good behaviour in terms of shape or inherent flatness).
The LAM PLAN type M.M.® lubricant vaporised in a very small quantity allows cleaning the diamond’s cutting edges loaded with metal waste and operates cooling action.
The small quantity of lubricant significantly reduces the “machining sludge” volume. The work is cleaner and produces less waste.

Qualities

In order to obtain surface conditions varying from 0.2 to 0.01 micron/Ra, LAM PLAN proposes various types of rods. The distribution of the 2 materials which make up the patented bi-component rods type M.M.® remains constant, regardless of the shape given to them. The rods type 2000 are mono-components. They benefit from the quality of bi-component materials, but their efficiency is lower and their wear more rapid.



  Types

Patented M.M. Rods
Bi-components
M.M.® 980 lapping
M.M.® 991 finishing
M.M.® 992 superfinishing
Economic range
Mono-component
2002 lapping
2003 polishing

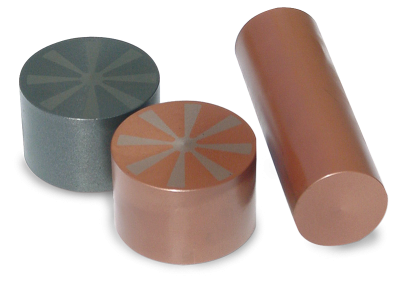

Rods M.M.® shape A

Cylindrical preliminary shape intended to be machined by turning with a dry carbide tool in order to adapt to the parts to be treated.



 Implementation example
Lapped part
Material
Rod
Abrasive
Result
Cupule for thigh prosthesis Chromium cobalt Shape A
Type 992
Stick
M.M. 143
Sphericity
3 µm


Rodoirs MM Rodoirs MM

 Type
Ø in mm Ref.
991 25 x 100 09 09991 28
992 25 x 100 09 09992 28
2002 25 x 100 09 20022 20
2003 25 x 100 09 20032 20
980 50 x 50 09 09980 10
991 50 x 50 09 09991 10
992 50 x 50 09 09992 10
2002 50 x 50 09 20021 10
2003 50 x 50 09 20031 10
2002 50 x 100 09 20022 10
2003 50 x 100 09 20032 10
2002 50 x 150 09 20023 10
2003 50 x 150 09 20033 10
980 75 x 50 09 09980 80
991 75 x 50 09 09991 80
992 75 x 50 09 09992 80
2002 75 x 50 09 20021 80
2003 75 x 50 09 20031 80
2002 75 x 100 09 20022 80
2003 75 x 100 09 20032 80
2002 75 x 150 09 20023 80
2003 75 x 150 09 20033 80
2002 100 x 50 09 20021 90
2003 100 x 50 09 20031 90
2002 100 x 100 09 20022 90
2003 100 x 100 09 20032 90
2002 100 x 150 09 20023 90
2003 100 x 150 09 20033 90

NEW Custom machining package

 Designation
Qty. Ref.
Custom machining package 1 99 SAV0F 00

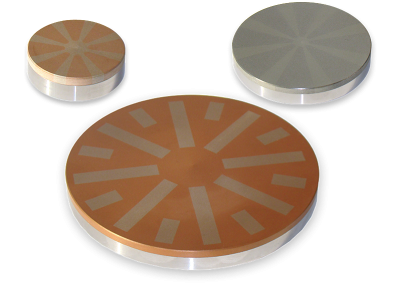

Rods M.M.® shape B

Our Shape B rods are composed of a 5 mm active part fixed to a steel* ensuring great rigidity. Please contact us for dimensions above 200 mm. To machine the rods and use them, the shapes A or B must be tightened in a mandrel one turn mounted on a metal rod (by tapping or gluing).

NOT: The tapping must always remain below the steel* thickness in the case of shapes B.
In any case (shapes A or B), the centre of the coating has to be cleared to avoid the dead point. During shaping, it is recommended to recover the chips and dusts to reduce the cleaning time.

*aluminium base on demand



 Implementation example
Lapped part
Material
Rod
Abrasive
Result
Safety valve Satellite Shape B
Type 991
Stick
M.M.141
Tightness


Rodoirs MM Rodoirs MM

 Type
Ø in mm Ref.
980 50 x 15 09 09980 30
991 50 x 15 09 09991 30
992 50 x 15 09 09992 30
2002 50 x 15 09 02002 30
2003 50 x 15 09 02003 30
980 100 x 15 09 09980 40
991 100 x 15 09 09991 40
992 100 x 15 09 09992 40
2002 100 x 15 09 02002 40
2003 100 x 15 09 02003 40
980 150 x 15 09 09980 50
991 150 x 15 09 09991 50
992 150 x 15 09 09992 50
2002 150 x 15 09 02002 50
2003 150 x 15 09 02003 50
980 200 x 15 09 09980 60
991 200 x 15 09 09991 60
992 200 x 15 09 09992 60
2002 200 x 15 09 02002 60
2003 200 x 15 09 02003 60

NEW Custom machining package

 Designation
Qty. Ref.
Custom machining package 1 99 SAV0F 00

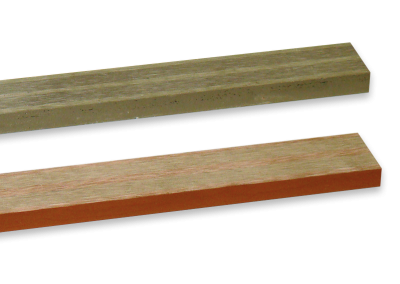

Lapidary M.M.® shape C

Intended to prepare the rods for the machine of special shaped parts.



 Implementation example
Lapped part
Material
Rod
Abrasive
Result
Rolling machine cylinder Fonte Shape C
Type 980
Stick
M.M.133
Roughness
Ra 0,08


Rodoirs MM

 3 units
 Types
Dim. (mm) Ref.
980 10 x 20 x 560 09 08445 30
991 10 x 20 x 560 09 08446 30
992 10 x 20 x 560 09 08449 30

NEW Custom machining package

 Designation
Qty. Ref.
Custom machining package 1 99 SAV0F 00

Expandable cylindric rods

The formula for the accuracy of borings.

The set is composed of:

  • A conical shaft to be mounted on the mandrel.
  • A cast iron rod with pinched structure. A helical slot allows the expansion while maintaining its geometric shape. The rod’s interior is conical in order to receive the shaft.
  • A tube-shaped pushrod is here allows driving the rod on the shaft.
Procedure

The abrasives to be used with the rods is selected according to their tasks:

  • Important stock removal: diamond dosing stick M.M.132
  • Super-finishing : diamond dosing stick M.M.142 or 144

Lubrication thanks to the M.M.712 fluid.

Use

lamplan rodagepolissage supports rodoirscylindriquesfig1 en



Results

lamplan rodagepolissage supports rodoirscylindriquesfig1


A 15,9 mm diameter has been drilled on a 38 mm length.
After checking, an ovalisation of 4/100th mm has been revelled and a surface condition of 0.5-micron Ra.

First operation

With rod and diamond
dosing stick M.M.132: ovalisation reduced to 4/10th micron. surface condition of 0.12-micron Ra..



Second operation

With rod and diamond dosing stick M.M.144: limited ovalisation to 1/10th micron. Surface condition to 0.03-
micron Ra.

Expandable cylindric rods

 Ø (mm)
Lenght E (mm) Expansion D (mm) Ref.
1,19 12,70 1,168 à 1,397 99 91011 90
1,59 15,85 1,574 à 1,930 99 91015 90
1,98 15,85 1,956 à 2,311 99 91019 80
2,38 19,05 2,362 à 2,743 99 91023 80
2,78 19,05 2,743 à 3,099 99 91027 80
3,17 22,19 3,149 à 3,479 99 91031 70
3,57 22,19 3,530 à 3,886 99 91035 70
3,97 22,19 3,937 à 4,318 99 91039 70
4,37 22,19 4,318 à 4,673 99 91043 70
4,76 34,91 4,724 à 5,105 99 91047 60
5,16 34,91 5,130 à 5,461 99 91051 60
5,56 44,45 5,537 à 5,918 99 91055 60
5,95 44,45 5,918 à 6,248 99 91059 50
6,35 50,80 6,324 à 6,705 99 91063 50
6,75 50,80 6,731 à 7,010 99 91067 50
7,14 50,80 7,112 à 7,340 99 91071 40
7,54 50,80 7,518 à 7,670 99 91075 40
7,94 50,80 7,924 à 8,305 99 91079 40
8,33 50,80 8,305 à 8,610 99 91083 30
8,73 50,80 8,712 à 8,915 99 91087 30
9,13 50,80 9,093 à 9,245 99 91091 30
9,53  63,50 9,499 à 9,855 99 91095 30
9,92  63,50 9,906 à 10,185 99 91099 20
10,32  63,50 10,287 à 10,515 99 91103 20
10,72  63,50 10,693 à 10,845 99 91107 20
11,11  63,50 11,074 à 11,430 99 91111 10
11,51  63,50 11,480 à 11,785 99 91115 10
11,91  63,50 11,861 à 12,090 99 91119 10
12,30  63,50 12,268 à 12,420 99 91123 00
12,70  82,55 12,674 à 13,081 99 91127 00
13,49  82,55 13,462 à 13,868 99 91134 90
14,29  82,55 14,249 à 14,579 99 91142 90
15,08  82,55 15,062 à 15,290 99 91150 80
15,88  82,55 15,849 à 16,256 99 91158 80
16,67  82,55 16,637 à 16,941 99 91166 70
17,46  82,55 17,424 à 17,627 99 91174 60
18,26  82,55 18,237 à 18,415 99 91182 60
19,05  88,90 19,024 à 19,380 99 91190 50
19,84  88,90 19,812 à 20,116 99 91198 40
20,64  88,90 20,599 à 20,853 99 91206 40
21,43  88,90 21,412 à 21,615 99 91214 30
22,23  88,90 22,199 à 22,580 99 91222 30
23,02  88,90 22,987 à 23,342 99 91230 20
23,81  88,90 23,774 à 24,079 99 91238 10
24,61  88,90 24,587 à 24,790 99 91246 10

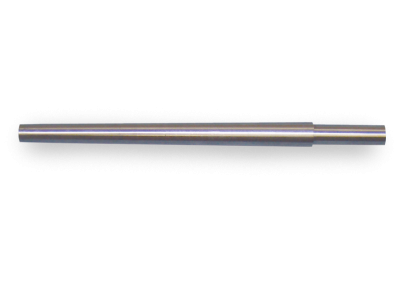

Conical shafts

 N°
Ø A (mm)
Lenght B (mm) Lenght C (mm) Ref.
4/0 3,17 19,05 39,10 99 92004 00
3/0 3,17 19,05 39,10 99 92003 00
2/0 3,17 19,05 41,25 99 92002 00
0 3,17 19,05 44,45 99 92000 00
1 4,74 25,40 69,85 99 92000 10
2 4,76 25,40 76,20 99 92000 20
3 4,76 25,40 101,60 99 92000 30
4 5,53 25,40 101,60 99 92000 40
5 9,79 38,10 127,00 99 92000 50
6 7,90 38,10 127,00 99 92000 60
7 9,51 38,10 152,40 99 92000 70
8 10,27 38,10 152,40 99 92000 80
9 12,70 50,80 177,80 99 92000 90
10 12,70 50,80 177,80 99 92001 00

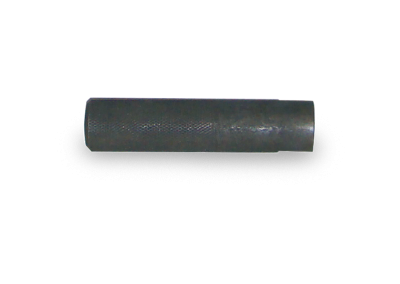

Tappets

 N°
Ref.
4/0 99 93004 00
3/0 99 93003 00
2/0 99 93002 00
0 99 93000 00
1 99 93000 10
2 99 93000 20
3 99 93000 30
4 99 93000 40
5 99 93000 50
6 99 93000 60
7 99 93000 70
8 99 93000 80
9 99 93000 90
10 99 93001 00

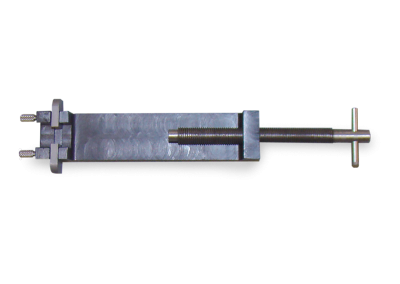

Extractors

 Characteristics
Réf.
For rods Ø 1,19 à 4,37 mm 99 94000 10
For rods Ø 4,76 à 15,48 mm 99 94000 20
For rods Ø 15,88 à 31,75 mm 99 94000 30


Any other dimension, on demand.

Guidance

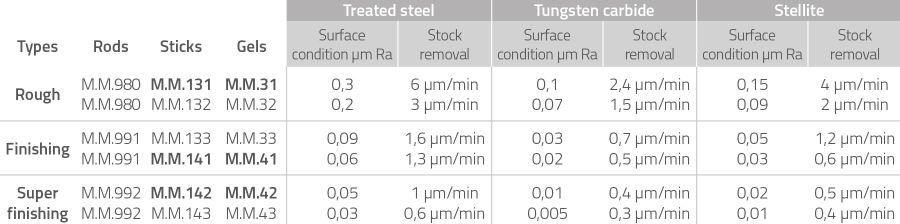

Example of implementation

Les sticks et gels conseillés pour un emploi courant sont indiqués en caractères gras.
