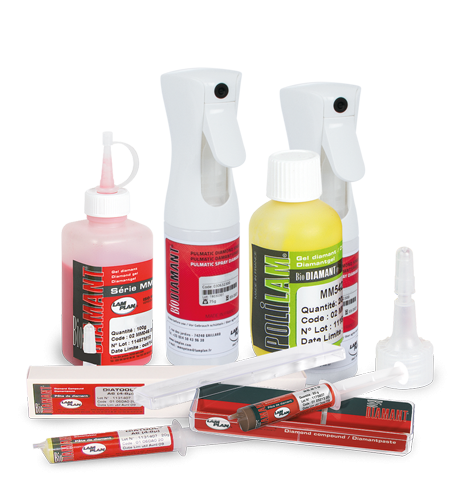

Diamond abrasives

Liquids, sticks, pastes & gels Bio DIAMANT® monocristaline & polycristaline.

Diamond abrasives bio diamant lam plan

Bio DIAMANT® Pulmatic liquids

Used to obtain good distribution of diamond abrasive when polishing large surfaces. Rechargeable pack, non-aerosol.

Bio DIAMANT® Pulmatic series 310 – 75 g

Alcohol based monocristaline

  Type µm Ref.
  025 313 1/4 03 97313 00
  1 313 1 03 01313 00
  2 313 2 03 02313 00
  3 313 3 03 03313 00
  6 313 6 03 06313 00
  8 313 8 03 08313 00
  10 313 10 03 10313 00
  14 313 14 03 14313 00
  25 313 25 03 25313 00
  40 313 40 03 40313 00

Bio DIAMANT® Pulmatic series 320 P – 75 g

Alcohol based polycristaline

 Type
µm Ref.
025 313P 1/4 03 97323 00
1 313P 1 03 01323 00
2 313P 2 03 02323 00
3 313P 3 03 03323 00
6 313P 6 03 06323 00
8 313P 8 03 08323 00
10 313P 10 03 10323 00
14 313P 14 03 14323 00
25 313P 25 03 25323 00

Bio DIAMANT® Gels

The Bio DIAMANT® formula ensures even distribution of abrasive film, as well as excellent adhesion to the item being polished.
Ready to use, this gel is ideal for maintenance polishing and produces an excellent shine. Very fast diamond action.

Bio Diamant® gels series M.M.540 – 20 g

  Type µm Ref.
  M.M.540 1/10 02 MM548 10
  M.M.540 1/4 02 MM547 10
  M.M.540 3/4 02 MM546 10
  M.M.540 1 02 MM545 10
  M.M.540 2 02 MM544 10
  M.M.540 3 02 MM543 10
  M.M.540 6 02 MM542 10
  M.M.540 9 02 MM541 10

Bio Diamant® gels series M.M.530 – 20 g

  Type µm Ref.
  M.M.530 10 02 MM533 10
  M.M.530 15 02 MM532 10
  M.M.530 30 02 MM531 10
  M.M.530 45 02 MM530 10

Bio Diamant® gels series M.M.40 – 100 g

  Type µm Ref.
  M.M.40 3/4 02 MM046 00
  M.M.40 1 02 MM045 00
  M.M.40 2 02 MM044 00
  M.M.40 3 02 MM043 00
  M.M.40 6 02 MM042 00
  M.M.40 9 02 MM041 00

Bio Diamant® gels series M.M.30 – 100 g

  Type µm Ref.
  M.M.30 10 02 MM033 00
  M.M.30 15 02 MM032 00
  M.M.30 30 02 MM031 00
  M.M.30 45 02 MM030 00

Bio DIAMANT® Pastes

Bio DIAMANT® products present no risk of toxicity or noxiousness to the user’s health.
During the development of Bio DIAMANT® products, chemical components are selected exclusively from substances classed as non-dangerous complying with REACH regulations (relating to the packaging and labelling of dangerous substances and preparations causing skin irritation).

Environmental compliance

Our Bio DIAMANT® products are biodegradable. Safety data is available for all products complying with REACH regulations

Identification

You can identify the series and therefore the solubility, Grit texture and concentration of each Bio DIAMANT® paste according the the type (e.g. 6 103).

Series 100 water soluble.
Series 210 oil soluble.

Example of type identification:

  • Paste type: 6 103
  • Grit texture: 6 microns
  • Series: 100
  • Concentration: 3

Bio DIAMANT® pastes series 210 – 10 g

Very high performance diamond paste for polishing hard and extra hard materials.

Available in a wide range of grain sizes from 1 to 90 µm.
Does not contain water, protects polished surfaces from corrosion.
Cleaning is done with water + 742 detergent or with a solvent such as Stanol.

High yielding abrasives for polishing hard and extra-hard materials.
Fluidity enables use without lubricating fluid.

  Type µm Ref.
  1 213 1 01 01213 00
  3 213 3 01 03213 00
  6 213 6 01 06213 00
  8 213 8 01 08213 00
  14 213 14 01 14213 00
  25 213 25 01 25213 00
  40 213 40 01 40213 00
  60 213 60 01 60213 00
  90 213 90 01 90213 00
pastes series 100

Bio DIAMANT® pastes series 100 – 10 g

Diamond paste for finish polishing of all materials.

Suitable for polishing stages up to optical polishing on soft substrates.
BIO DIAMANT® SERIES 100 paste is available in a wide range of grit sizes down to very small ones and requires the use of M.M.712.
WS water based fluid.
Cleaning is done with water + lye 742 or alcohol.

All stages up to optical polishing possible.

  Type µm Ref.
  010 103 1/10 01 99103 00
  025 102 1/4 01 97102 00
  025 103 1/4 01 97103 00
  1 103 1 01 01103 00
  1 105 1 01 01105 00
  2 103 1 01 02103 00
  2 105 1 01 02105 00
  3 102 1 01 03102 00
  3 103 1 01 03103 00
   3 105 1 01 03105 00
   6 101 6 01 06101 00
   6 102 6 01 06102 00
   6 103 6 01 06103 00
   6 105 6 01 06105 00
   8 102 8 01 08102 00
   8 103 8 01 08103 00
   8 105 8 01 08105 00
   14 101 14 01 14101 00
   14 102 14 01 14102 00
   14 103 14 01 14103 00
   14 105 14 01 14105 00
pastes series 205S - 20g

Bio DIAMANT® pastes series 205S – 10 g

High performance diamond paste for mould polishing.

Excellent adhesion to material surfaces, very good temperature resistance, can be used on hot surfaces up to 170°C.
Due to its lubricating properties, no lubricant is required.
Does not contain water, protects polished surfaces from corrosion.
Cleaning is done with water + 742 detergent or with a solvent such as Stanol.

VOC free.
Can be used on hot surfaces
: up to 170°C



  Type µm Réf.
  1.205S 1 01 01205S 00
  3.205S 3 01 03205S 00
  6.205S 6 01 06205S 00
  8.205S 8 01 08205S 00
  14.205S 14 01 14205S 00
pastes POLILAM MS

Bio DIAMANT® pastes POLILAM MS – 10 g series

Universal diamond paste for lapping and polishing of metal parts.

Bio DIAMANT® POLILAM MS abrasive paste is made from high purity, narrow-gauge single crystal diamond.
The concentration of abrasive is of the standard type, and the thick, creamy consistency of the abrasive ensures good bonding to the work surface.
Its fatty bond allows it to be used pure or with M.M.705
OS oil-based fluid. contains no water, protects polished surfaces from corrosion.
Cleaning is done with water + 742 detergent or with a solvent such as Stanol.

Universal bonding paste.
Economical and versatile.


  Type µm Ref.
  1 MS 1 01 010MS 00
  3 MS 3 01 030MS 00
  6 MS 6 01 060MS 00
  8 MS 8 01 080MS 00
  14 MS 14 01 140MS 00
  25 MS 25 01 250MS 00
  40 MS 40 01 400MS 00
  60 MS 60 01 600MS 00
  90 MS 90 01 900MS 00

Bio DIAMANT® pastes DIATOOL® BX series

Diamond paste for roughing, polishing on hard steels and cermet.

Used for high pressure applications, prevents seizing, requires the use of M.M.705 – OS oil-based fluid, contains no water, protects polished surfaces from corrosion.
Cleaning is done with water + detergent 742 or with a solvent like Stanol.

High pressure.
Available in 10 and 20 g.

      10 g 20 g
  Type µm Ref. Ref.
  DIATOOL® BX1 1 (0-2) 01 01DBX 00 01 01DBX 20
  DIATOOL® BX3 3 (2-4) 01 03DBX 00 01 03DBX 20
  DIATOOL® BX6 6 (4-8) 01 06DBX 00 01 06DBX 20
  DIATOOL® BX8 8 (6-10) 01 08DBX 00 01 08DBX 20
  DIATOOL® BX14 14 (10-20) 01 14DBX 00 01 14DBX 20
  DIATOOL® BX25 25 (20-40) 01 25DBX 00 01 25DBX 20
  DIATOOL® BX40 40 (36-54) 01 40DBX 00 01 40DBX 20
  DIATOOL® BX60 60 (54-80) 01 60DBX 00 01 60DBX 20

Guidance

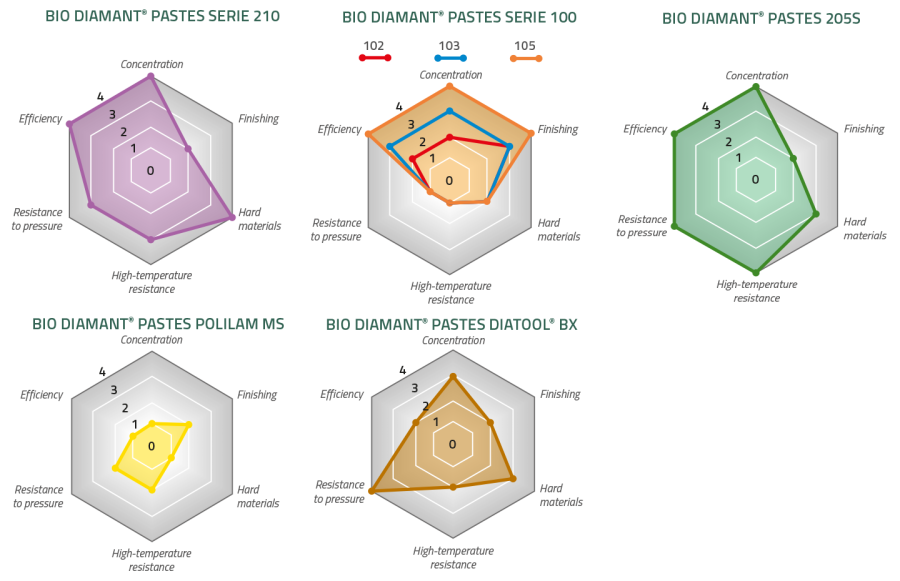

Selection of a Bio DIAMANT® abrasive paste

Depending on your criteria, the diagrams below will help you to choose the most suitable diamond paste.
