Specific carriers

Carriers for single and double-side machines

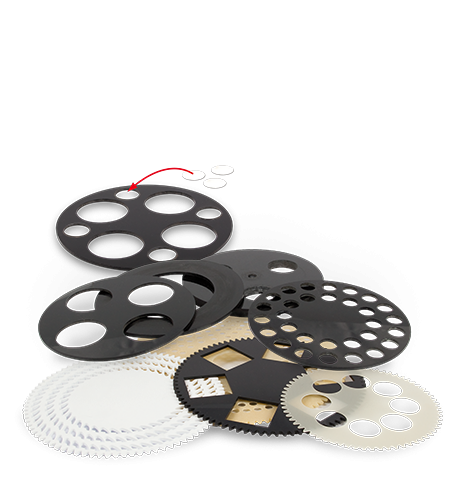

Specific carriers

Carriers & skids for single side machines

Easily usinable plastic disc holding your parts during the lapping process. 3mm thick.
On demand, PMMA carriers are delivered with honeycomb cells according to the dimension of your parts

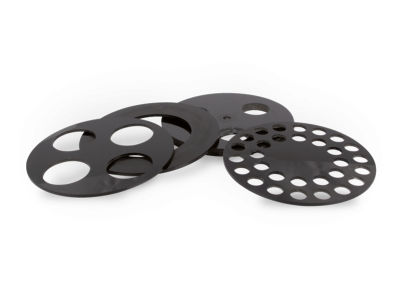

Carriers series 884 for single side machines

Easily usinable plastic disc holding your parts during the lapping process. 3mm thick.
On demand, PMMA carriers are delivered with honeycomb cells according to the dimension fop your parts.

 Designation
Qty. Ø in mm Ref.
PVC carriers for the production of holding grids 3 138 08 83504 00
3 245 08 86004 00
3 275 08 87504 00
3 406 08 81004 00
3 480 08 81204 00

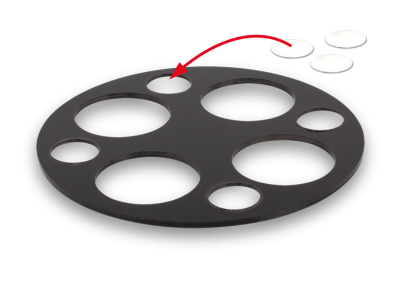

Skids for carriers series 884

 Designation
Qty. Ø in mm Ref.
Skids 600 Ø 12 UPAT 012AC

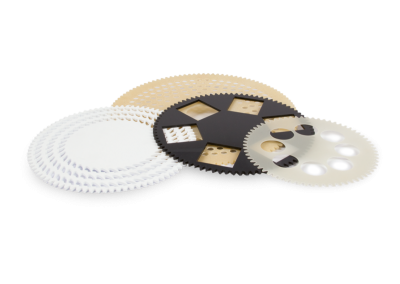

Carriers for double-side machines

The carriers are used to maintain the parts on the double-side machine. Their conception is realised according to the geometry of your parts or according to your drawings.
Our carriers are available in a wide range of thickness, from a few millimetres to 200 µm.

Depending on your application and the nature of your parts, we propose our carriers in a large range of materials, such as stainless steel, blue steel (hardened until 600 Hv), glass fibre, aramid, PVC, epoxy,… For any double-side machine brand.

Advantages
  • Excellent flatness and parallelism
  • Quality of cuts
  • Very low thickness dispersal
  • Cuts atypical forms
Exemples of application domain (Industrial sectors)
  • Optical
  • Watchmaking
  • Mechanic industry
  • LED & semi-conductors

Carriers for double-side machines

 Designation
Ref.
Epoxy carrier On demand
PVC carrier On demand
Metallic carrier On demand
