Lapping & polishing machine for intensive production of parts: Ø10 to 350 mm

M.M.9100 E version
M.M.9100 E version
M.M.9100 S version
M.M.9100 S version
M.M.9100 SR version
M.M.9100 SR version
M.M.9100 EC version
M.M.9100 EC version
  • Plate Ø
    1 000 mm
  • Plate rotation speed
    from 15 to 50 rpm
  • Inner ring Ø
    406 mm
  • Weight (kg)
    1000
INTRODUCTION

M.M.9100

E, S, SR and EC version

Lapping techniques with heavy loads and intensive use require a suitably durable material. This is offered by the LAM PLAN mid and large diameter range of machines.

The rigidity of their structures and the gear motor group torque are especially suited to the high abrasion of LAM PLAN lapping plates.

The number of peripheral devices available make the machines particularly versatile and effective. Specific equipment can be offered according to requirements.

The S, SR and EC type lapping machines are equipped with pneumatic pressure systems of different powers.

VIDEO & VISUALS

Design
and advanced technology

Associated with the methods developed by LAM PLAN, these machines guarantee a consistency in the obtaining of your surface condition.

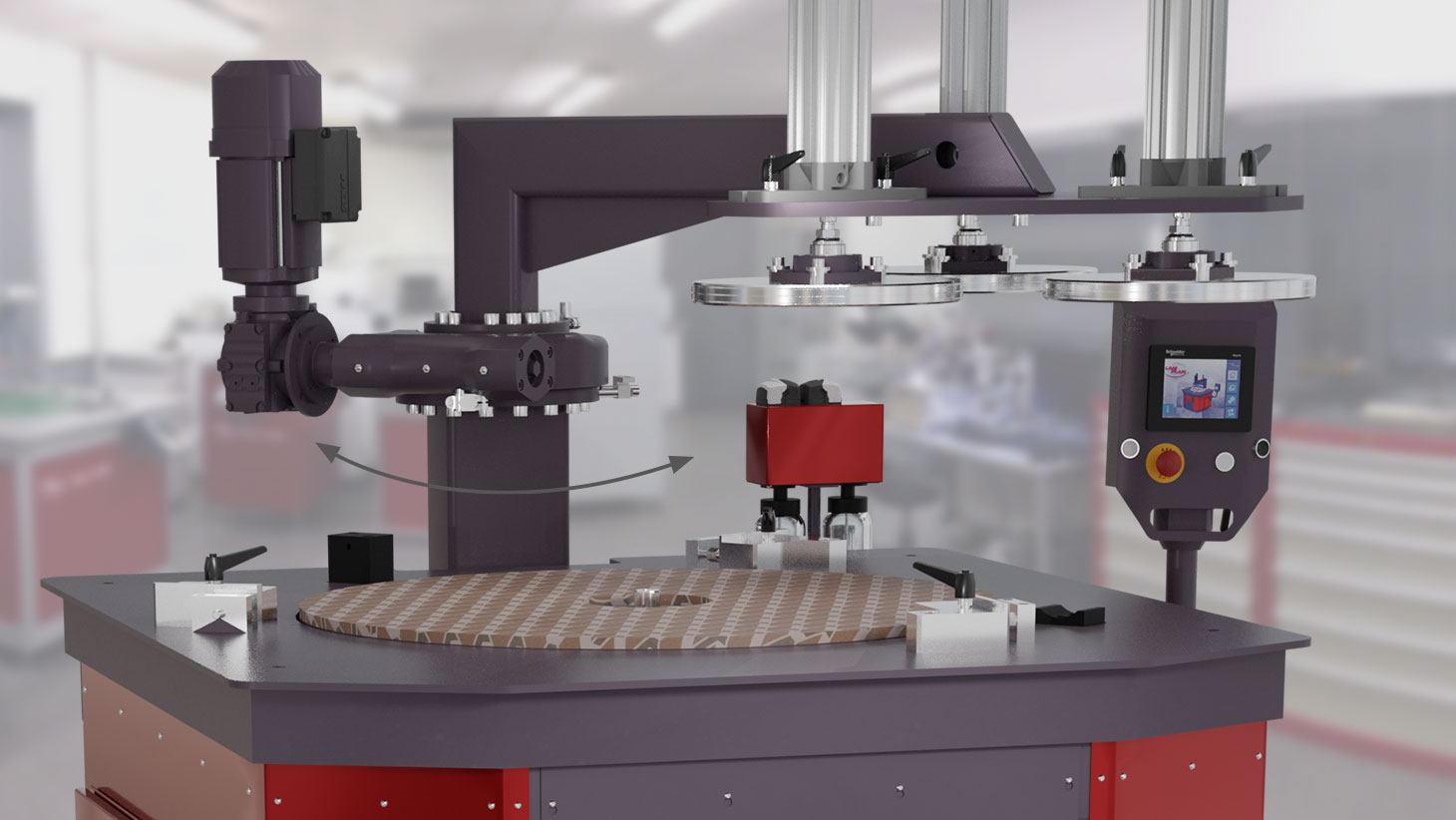

M.M.9100 SR version

M.M.9100 S version

M.M.9100 S version

M.M.9100 E version

M.M.9100 E version

M.M.9100 EC version with AUTOPLAN

M.M.9100 EC version with AUTOPLAN

    Non-contractual images
    IN DETAIL

    Technical characteristics
    and equipment

    Built-in modem

    3F56150595B8601EAll M.M.9000 series machines are fitted with an integrated modem as standard in order to carry out remote maintenance operations. They are compatible with dedicated LAM PLAN distribution systems and can be optionally fitted with an abrasive and lubricant level sensor. Production data collection in the form of CSV files is possible via the USB interface.

    Option LAM PLAN AUTOPLAN

    AUTOPLAN system enables to manage efficiently the flatness and the grooving of the plate. It is installable and removable in a few minutes thanks to fixation points integrated to the machine.

    Technical data M.M.9100 E version

    Plate Ø
    1000 mm
    Inner ring Ø
    406 mm
    Capacity per ring
    1 part Ø 350 mm
    or 225 pièces Ø 10 mm
    Number of rings
    3
    Electric power supply

    400 V – 50 Hz – 3 phases + earth + neutral

    Motor Power
    5.5 kW
    Pressure application system
    3 weights of 28 kg included
    Control
    Touch screen 5,7 inches
    Plate rotation speed
    From 15 to 50 tr/min
    Dim. (W x H x D)
    1900 x 1800 x 1500 mm
    Weight (without plate)
    1000 kg
    Abrasive distribution system
    Included
    Type depending on the plate
    Reference
    109100E 00

    Technical data M.M.9100 S version

    Version with pneumatic pressure comprising three double effect cylinders mounted on a fixed arm.
    What changes from the E version
    Pressure application system
    3 double effect cylinders
    Pressure
    10 to 2500 N
    Dim. (W x H x D)
    1900 x 1800 x 2300 mm
    Weight (without plate)
    1400 kg
    Reference
    109100S 00

    Options for M.M.9100 S

    • Level sensors for diamond liquid and lubricating fluid
      08 90001 00
    • Refrigeration and heating unit P803, for lapping plate
      10 80003 90
    • Flatness gauge for checking the flatness of the lapping plate
      08 00893 00

    Technical data M.M.9100 SR version

    The cylinders are installed on fixed or mobile arms. On the SR version the arm turns around its 180° axis thanks to a motorised crown and is controlled by the man/machine interface. This facilitates access to the work zone, plate changing and allows passage of a robotised loading/unloading arm.
    What changes from the E version
    Pressure application system
    3 pneumatic cylinders,
    rotating arm motorized
    Dim. (W x H x D)
    1900 x 1900 x 2300 mm
    Weight (without plate)
    1500 kg
    Reference
    10 9100SR 00

    Options for M.M.9100 SR

    • Level sensors for diamond liquid and lubricating fluid
      08 90001 00
    • Refrigeration and heating unit P803, for lapping plate
      10 80003 90
    • Flatness gauge for checking the flatness of the lapping plate
      08 00893 00

    Technical data M.M.9100 EC version

    If the part which has to be worked is too heavy regarding the pressure prescription required for a lapping operation, lapping machine EC will have to be used. This machine’s version is equipped with a pneumatic bracket which will unballast the lapping plate of the workpart weight, and provide an optimal pressure for the lapping process.

    What changes from the E version
    Load compensation system

    1 pneumatic cylinder,
    rotating arm motorized

    Compensation applicable
    10 to 2500 N
    Dim. (W x H x D)
    1900 x 1900 x 2300 mm
    Weight (without plate)
    1450 kg
    Reference
    10 9100EC 00

    Options for M.M.9100 EC

    • Level sensors for diamond liquid and lubricating fluid
      08 90001 00
    • Refrigeration and heating unit P803, for lapping plate
      10 80003 90
    • Flatness gauge for checking the flatness of the lapping plate
      08 00893 00
    ACCESSORIES & OPTIONS

    Available accessories

    Dosing unit type 709
    08 01709 00

    Peristaltic model dedicated to LAM PLAN machines.

    • Capacity: 2 x 500 cc including 1 with agitator
    • Electric power supply: 220V single phase + 24 V input for control
    • Pump flow rate: 0,5 ml/sec.
    • Distribution system: nozzles not included
    Dosing unit type 710
    08 01710 00

    Peristaltic model dedicated to LAM PLAN machines, recommended for oil-based products.

    • Capacity: 2 x 500 cc including 1 with agitator
    • Electric power supply: 220V single phase + 24 V input for control
    • Pump flow rate: 0,5 ml/sec.
    • Distribution system: nozzles not included
    Dosing unit type 719
    08 01719 00

    Peristaltic model dedicated to LAM PLAN machines, recommended for oil-based products.

    • Capacity: 2 x 500 cc including 1 with agitator
    • Electric power supply: 220V single phase + 24 V input for control
    • Pump flow rate: N.C.
    • Distribution system: nozzles not included
    Dosing pump type 8017

    Controlled by the machine interface or by integrated sequencer for the autonomous version.

    • Pump type: 1 peristaltic pump + mixing system
    • Bowl: useful volume 7 litres
    • Electrical power supply: 220V single-phase
    • Pump flow rate: 3,5 ml/sec.
    • Distribution system: nozzle 813 on mobile stand supplied with the dosing unit

     Designation
    Qty. Capacity Ref.
    Dosing pump type 8017 for LAM PLAN machine 1 7 litres 08 08017 00
    Indepedent dosing pump type 8017 1 7 litres 08 18017 00
    Dosing pump type 8003

    Controlled by the machine interface or by integrated sequencer for the autonomous version.

    • Pump type: 1 vortex pump + mixing system
    • Bowl: useful volume of 50 litres, on casters, drain valve
    • Electrical power supply: 220V single-phase
    • Pump flow rate: 50 litres/minute
    • Distribution system: 3 swivelling outputs. Solenoid valve 3 tracks controlled by the sequencer included with the pump.

     Designation
    Qty. Capacity Ref.
    Dosing pump type 8003 for LAM PLAN machine 1 50 litres W000 08003
    Indepedent dosing pump type 8003 1 50 litres W001 08003
    Dosing pump type 8007

    Controlled by the machine interface or by integrated sequencer for the autonomous version.

    • Pump type: 1 vortex pump
    • Bowl: useful volume 7 litres
    • Electrical power supply: 220V single-phase
    • Pump flow rate: 25 litres/minutes
    • Distribution system: 3 swivelling outputs. Solenoid valve 3 tracks controlled by the sequencer included with the pump.

     Designation
    Qty. Capacity Ref.
    Dosing pump type 8007 for LAM PLAN machine 1 7 litres W000 08007
    Indepedent dosing pump type 8007 1 7 litres W001 08007
    Autonomous dosing unit M.M.809B – Venturi
    • Distribution system:
      – Distribution of 2 different liquids by Venturi system
      – 1 liquid compartment with an agitator
    • Control: By analog buttons and timers
    • Compressed air feed system: 2 bars
    • Electrical power supply: 220 V single-phase- 50 Hz
    • Dosing machine communication: 1 x 220 V input for machine servoing

     Designation
    Qty. Dim. Ref.
    Dosing unit M.M.809B 1 with 2 glass bottles 500 cc 08 01809 10
    Autonomous dosing unit M.M.909 – Peristaltic
    • Distribution system: 3 standard peristaltic pumps with an outlet to drive an external pump
    • Control: touch screen
    • Electrical power supply: 220 V single-phase – 50 Hz
    • Dosing machine communication: 1 x 24 V input for machine servoing

     Designation
    Qty. Dim. Ref.
    Dosing unit M.M.909
    ADAPTABLE VERSION
    With a manual start/stop button
    1 with 3 glass bottles 500 cc 08 03799 00
    Stirrer 1 for glass bottle 500 cc 08 02816 00
    Autonomous dosing unit M.M.909 HV – Peristaltic
    • Distribution system: 2 standard peristaltic pumps, 1 large flow pump for high viscosity liquids and an outlet to drive an external pump
    • Control: touch screen
    • Electrical power supply: 220 V single-phase – 50 Hz
    • Dosing machine communication: 1 x 24 V input for machine servoing

     Designation
    Qty. Dim. Ref.
    Dosing unit M.M.909 HV 1 with 3 glass bottles 500 cc 08 00799100
    Stirrer 1 for glass bottle 500 cc 08 02816 00
    Cast iron conditioning rings 40″ (Ø 1000 mm)

    We carefully select special high quality cast iron for optimum, durable results. Suitable for all lapping machines, whatever the brand or size.

    Available from stock or produced to order.



    Ø in mm Qty. Ref.
    Ext. Int.
    457 406 1 U457 A1000
    Ceramic conditioning rings with SPYLAP® 40″ (Ø 1000 mm)

    Prevent mechanical distortion problems. The ceramic rings enable you to preserve the flatness of the plate, to manage its heating, as well as limiting contamination thanks to the absence of graphite.

    The SPYLAP® sensor enables the user to visually prevent a significant mechanical distortion of the lapping (or polishing) support and of the part to be lapped. The SPYLAP® permanently monitors the temperature of the support and changes from black to red at a precisely predefined temperature.



    Ø in mm Qty. Ref.
    Ext. Int.
    450 406 1 08 81062 10
    Plastic rings 40″ (Ø 1000 mm)
    Ø in mm Qty. Ref.
    Ext. Int.
    450 406 1 08 87012 00
    Non-contractual images
