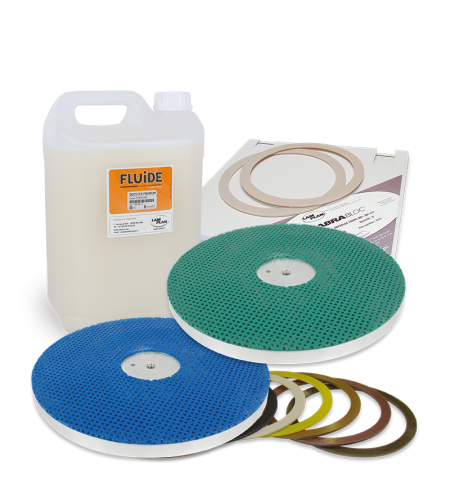

DIALAM diamond discs
& ABRABLOC dressing rings

The DIALAM supports are diamond composite supports with a high cutting capacity & ABRABLOC dressing rings are intended for the dressing the DIALAM disc.

DIALAM diamond discs & ABRABLOC dressing rings

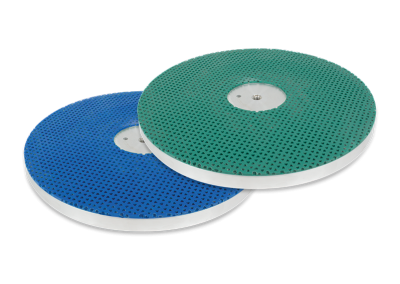

DIALAM diamond discs

The DIALAM supports are diamond composite supports with a high cutting capacity. Usable on single and double-side machines, they are recommended for pre-polishing processes requiring a high level of stock removal on all types of materials. The DIALAM discs are particularly efficient for the stock removal on very hard materials as sapphires and ceramics.

DIALAM diamond discs

coating stuck on a stainless steel.

 Characteristics
 Ø in mm Qty. Ref.

DIALAM Blue (plate)
High rougness – Thickness 3,5 mm

15”/381 1 09 DL140 30
DIALAM Green (plate)
Medium roughness – Thickness 3,5 mm
15”/381 1 09 DL150 30

Magnetic discs DIALAM

Associated with FMS® fixing system.

 Characteristics
 Ø in mm Qty. Ref.
DIALAM Blue (magnetic)
High rougness – Thickness 3,5 mm
15”/381 1 09 DL141 30
DIALAM Green (magnetic)
Medium roughness – Thickness 3,5 mm
15”/381 1 09 DL151 30

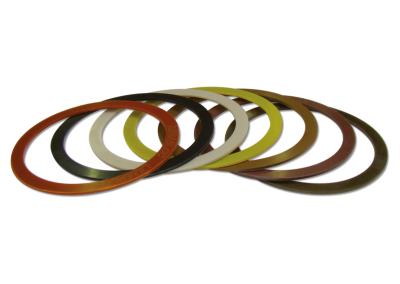

ABRABLOC dressing rings

ABRABLOC dressing rings are intended for the dressing the DIALAM disc. They replace
advantageously standard abrasive stones usually applied. The Abrablocs correct the plate geometry and brighten the cutting effect of DIALAM discs..

ABRABLOC dressing ring

 Characteristics
 Ø in mm Qty. Ref.
ABRABLOC Brown
for DIALAM Blue
178 mm ext./
158 mm int.
1 08 00200 60
ABRABLOC Ivory
for DIALAM Green
178 mm ext./
158 mm int.
1 08 00201 60

ABRABLOC refills

To stick on lapped aluminium support.

 Characteristics
 Ø in mm Qty. Ref.
Abrabloc – Refill Brown
for DIALAM Blue
178 mm ext./
158 mm int.
2 08 01200 50
Abrabloc – Refill Ivory
for DIALAM Green
178 mm ext./
158 mm int.
2 08 01201 50

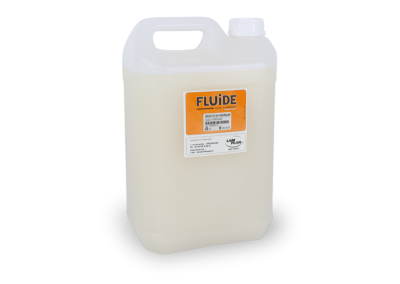

BOOSTER Lubricant

BOOSTER Lubricant

07 BP030 40

The Booster Lubricant has been specially developed to optimise the DIALAM’s yield. It is distributed (drop by drop) during pre-polishing cycles and allows regenerating the DIALAM disc guaranteeing a regularity of the stock removal cycle after cycle.

Packaging : 5 liters
