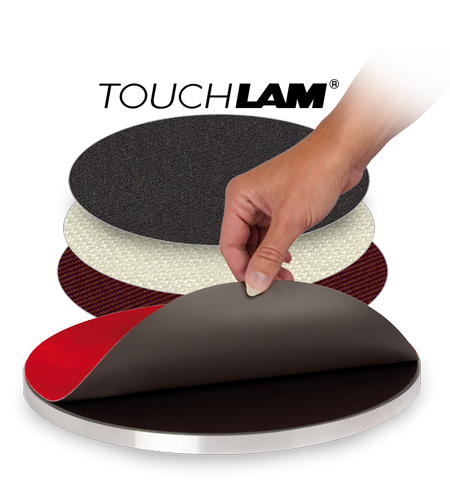

TOUCHLAM® polishing cloths

The TOUCHLAM® range is dedicated to aspect polishing and for all other kinds of accurate high quality polishing.

TOUCHLAM polishing cloths

Touchlam

LAM PLAN proposes a new generation of TOUCHLAM® polishing cloths. High technological products realised from exclusive materials, these cloths are intended to satisfy high precision demand concerning surfaces and geometry. The TOUCHLAM® range is dedicated to aspect polishing and for all other kinds of accurate high quality polishing. Oriented towards industrial applications and research, these cloths integrate new materials and treatments in their manufacturing to facilitate their use and guarantee high quality results. Self-adhesive, their implementation is fast and easy. Available in all diameters.

Composition of TOUCHLAM® polishing cloths

A polishing cloth is a complex gathering of various coats of materials, each one having their specific function:
– The active and visible part (1) of a cloth is the primary criteria. It gathers 4 classes, all with different characteristics
– A coating (2) which defines the cloth’s impermeability
– An adhesive film (3) having varying thickness and power of adhesion
– A support (4) defining the rigidity or the softness of the cloth.

For each application, the polishing cloth needs to be associated with the correct abrasive. LAM PLAN proposes 3 families of product: the diamond abrasives NEOLAP®, the composite abrasives ECOA® and the standard abrasive of the AQUA LAM® range.
The combination of these elements will allow to answer the 3 criteria composing the user’s specification: stock removal (SR), flatness, finishing or roughness.

Touchlam lamplan rodagepolissage supports touchlamfig2

In order to facilitate the removal of the protection film, the self-adhesive TOUCHLAM® cloths are equipped with a tab.

TOUCHLAM® polishing cloths gathers 4 major classes:

lamplan rodagepolissage supports touchlamfig3lamplan rodagepolissage supports touchlamfig4

Summary table

TOUCHLAM®polishing cloths
SR* Flatness Finishing Super finishing
1PU1 X X
1PU2 X X
1PU3 X X
1PU4 X X X
1PC2   X X
2NT1 X   X
2PC1   X X X
2PC2   X X X
2TT2 X X
2TS1   X X
2TS2     X
2FL1     X
2FL2     X
2MS1     X
3FP1       X
3SE2   X X X
3SA2   X X X
3SA4   X X X
3FV1       X
3FV2       X
4FV3       X
4MP2       X

TOUCHLAM® polishing cloths 1

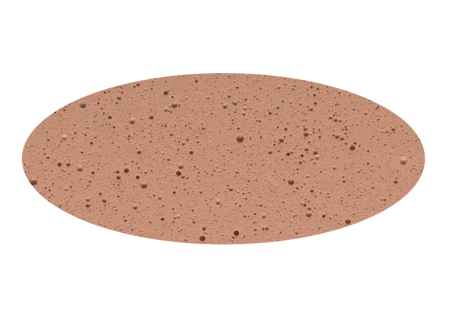

TOUCHLAM® polishing cloths 1PU1

 Box of 5 pieces
 Characteristics
Ø in mm Ref.
Polyurethane loaded with cerium oxide- extra hard.
From rough polishing to polishing of all materials.
Inherent flatness and long life service.
Commonly used with ECOA® abrasive slurries.
381 1PU 10A0 3815
400 1PU 10A0 4005
480 1PU 10A0 4805
610 1PU 10A0 6105
700 1PU 10A0 7005

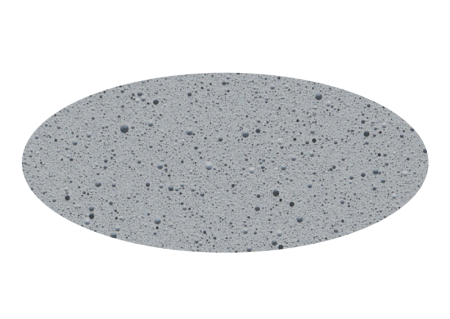

TOUCHLAM® polishing cloths 1PU2

 Box of 5 pieces
 Characteristics
Ø in mm Ref.

Polyurethane loaded with zirconium oxide – hard.
From rough polishing to polishing of all materials.
Inherent flatness and long life service.
Commonly used with ECOA® abrasive slurries.

381 1PU 20A0 3815
400 1PU 20A0 4005
480 1PU 20A0 4805

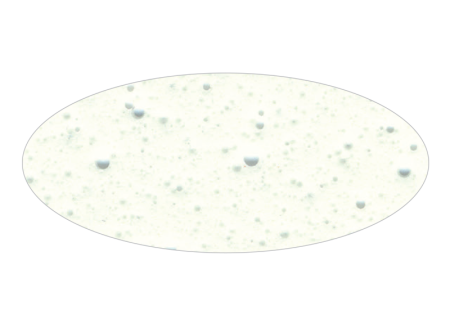

TOUCHLAM® polishing cloths 1PU3

 Box of 5 pieces
 Characteristics
Ø in mm Ref.
Polyurethane not loaded – hard.
From rough polishing to polishing of all materials.
Inherent flatness and long life service.
Commonly used with ECOA® abrasive slurries.
Available with grooves.
381 1PU 30A0 3815
400 1PU 30A0 4005
480 1PU 30A0 4805
610 1PU 30A0 6105
700 1PU 30A0 7005
Structured cloths

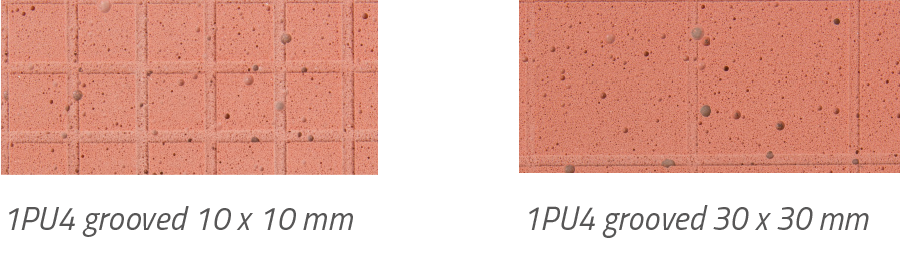

The polishing cloths TOUCHLAM® 1PU3 and 1PU4 are available with grooves on their surface in order to improve their performances.
Dimensions: 10 x 10 mm and 30 x 30 mm, depth of the grooves: 1 mm.

lamplan rodagepolissage supports touchlampu34fig1
The principal benefits are:
  • Higher stock removal
  • Excellent flatness control
  • Limitation of the suction effect
  • Modulation of the stock removal and surface condition.

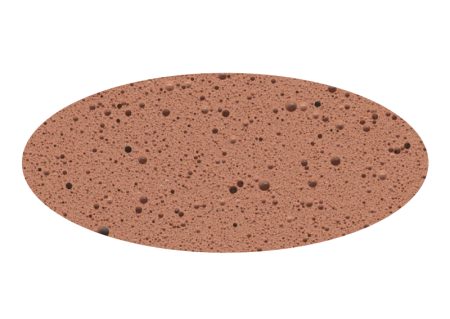

TOUCHLAM® polishing cloths 1PU4

 Box of 5 pieces
 Characteristics
Ø in mm Ref.
Polyurethane loaded with cerium oxide – medium-hard.
From rough polishing to polishing of all materials.
Inherent flatness and long life service.
Commonly used with ECOA® abrasive slurries.
Available with grooves.
381 1PU 40A0 3815
400 1PU 40A0 4005
480 1PU 40A0 4805
610 1PU 40A0 6105
700 1PU 40A0 7005
Structured cloths

The polishing cloths TOUCHLAM® 1PU3 and 1PU4 are available with grooves on their surface in order to improve their performances.
Dimensions: 10 x 10 mm and 30 x 30 mm, depth of the grooves: 1 mm.

lamplan rodagepolissage supports touchlampu34fig1
The principal benefits are:
  • Higher stock removal
  • Excellent flatness control
  • Limitation of the suction effect
  • Modulation of the stock removal and surface condition.

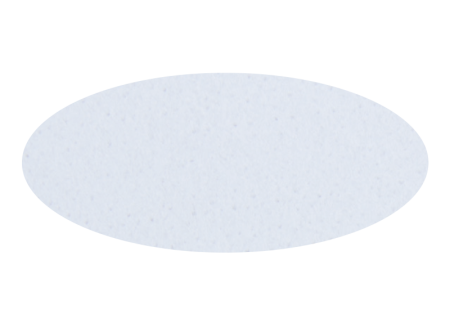

TOUCHLAM® polishing cloths 1PC2

 Box of 5 pieces
 Characteristics
Ø in mm Ref.
Polyurethane compressed impregnated fibres. Very hard.
Excellent flatness, high durability.
Can be used with all types of abrasives.
381 1PC 20A0 3815
400 1PC 20A0 4005
480 1PC 20A0 4805
610 1PC 20A0 6105
700 1PC 20A0 7005
914 1PC 20A0 9145
1 000 1PC 20A1 0005

TOUCHLAM® polishing cloths 2

TOUCHLAM® polishing cloths 2NT1 NOUVEAU

 Box of 5 pieces
 Characteristics
Ø in mm Ref.
Non-woven polyester/polypropylene composite.
High durability.
Multi-purpose disc, can be used for rough or finish polishing.
Commonly used with BioDIAMANT® NEOLAP® and ECOA abrasive slurries.
381 2NT 10A0 3815
400 2NT 10A0 4005
480 2NT 10A0 4805
610 2NT 10A0 6105
700 2NT 10A0 7005
914 2NT 10A0 9145
1 000 2NT 10A1 0005

TOUCHLAM® polishing cloths 2PC1

 Box of 5 pieces
 Characteristics
Ø in mm Ref.

Polyurethane compressed.
impregnated polyester fibres – hard.
Excellent flatness and high durability.
Can be used with diamond slurries or colloidal silicas.
Available in various patterns.

381 2PC 10A0 3815
400 2PC 10A0 4005
480 2PC 10A0 4805
610 2PC 10A0 6105
700 2PC 10A0 7005
Structured cloths

The polishing cloths TOUCHLAM® 2PC1 and 2PC2 are available with various structures: embossed and quartered (dimensions of the grooves 4,3 x 4,3 mm and 18,4 x 18,4 mm).
The action of the abrasive slurry is optimised on the entire surface of the parts.

lamplan rodagepolissage supports touchlamPC12fig1
The principal benefits are:
  • Higher stock removal
  • Excellent flatness control
  • Limitation of the suction effect
  • Modulation of the stock removal and surface condition.

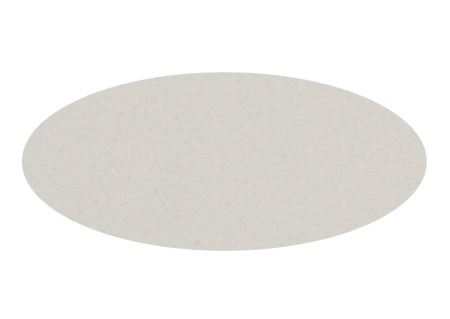

TOUCHLAM® polishing cloths 2PC2

 Box of 5 pieces
 Characteristics
Ø in mm Ref.

Polyurethane compressed impregnated with polyester fibres – medium-dur.
Excellent flatness and high durability.
Commonly used with diamond slurries or colloidal silicon.
Available in various patterns.

381 2PC 20A0 3815
400 2PC 20A0 4005
480 2PC 20A0 4805
610 2PC 20A0 6105
700 2PC 20A0 7005
Structured cloths

The polishing cloths TOUCHLAM® 2PC1 and 2PC2 are available with various structures: embossed and quartered (dimensions of the grooves 4,3 x 4,3 mm and 18,4 x 18,4 mm).
The action of the abrasive slurry is optimised on the entire surface of the parts.

lamplan rodagepolissage supports touchlamPC12fig1
The principal benefits are:
  • Higher stock removal
  • Excellent flatness control
  • Limitation of the suction effect
  • Modulation of the stock removal and surface condition.

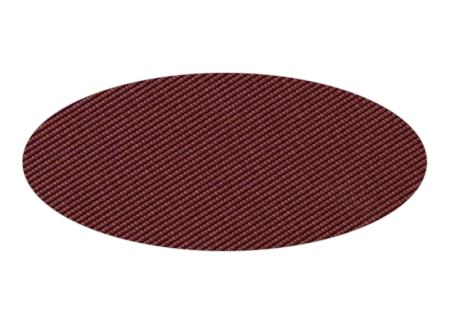

TOUCHLAM® polishing cloths 2TT2

 Box of 5 pieces
 Characteristics
Ø in mm Ref.

Taffeta woven synthetic fibres.
High stock removal and inherent flatness on
all materials.
High durability.
Commonly used with NEOLAP® diamond slurries.

381 2TT 20A0 3815
400 2TT 20A0 4005
480 2TT 20A0 4805
610 2TT 20A0 6105
700 2TT 20A0 7005

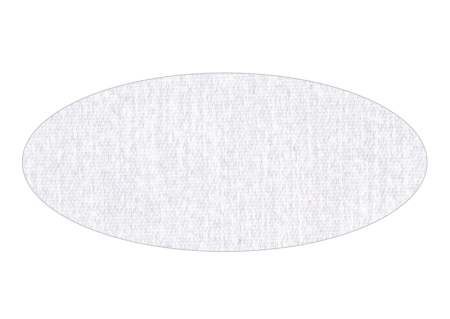

TOUCHLAM® polishing cloths 2TS1

 Box of 5 pieces
 Characteristics
Ø in mm Ref.

Satin woven natural fibres.
Excellent finishing of all materials.
Good inherent flatness.
Commonly used with NEOLAP® diamond slurries.

381 2TS 10A0 3815
400 2TS 10A0 4005
480 2TS 10A0 4805
610 2TS 10A0 6105
700 2TS 10A0 7005
914 2TS 10A0 9145
1 000 2TS 10A1 0005

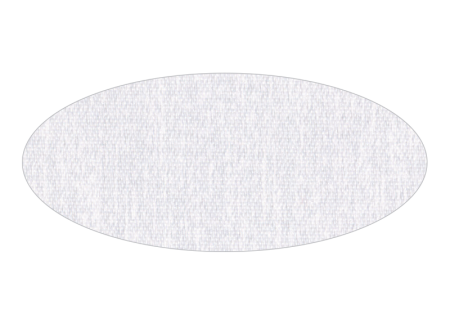

TOUCHLAM® polishing cloths 2TS2

 Box of 5 pieces
 Characteristics
Ø in mm Ref.

Satin woven natural fibres on flexible support.
Excellent finishing of all materials.
Good durability.
Commonly used with NEOLAP® diamond slurries.

381 2TS 20A0 3815
400 2TS 20A0 4005
480 2TS 20A0 4805
610 2TS 20A0 6105
700 2TS 20A0 7005
914 2TS 20A0 9145
1 000 2TS 20A1 0005

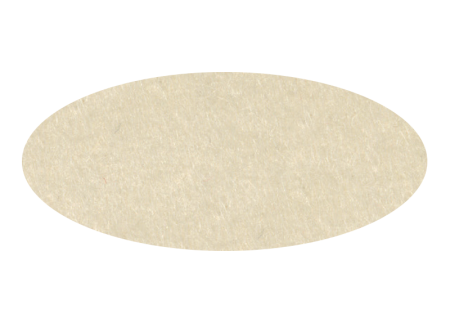

TOUCHLAM® polishing cloths 2FL1

 Box of 5 pieces
 Characteristics
Ø in mm Ref.

Compressed wool felt.
Finishing of plastics and glasses.
High durability.
Commonly used with AQUA LAM® cerium oxide.

381 2FL 10A0 3815
400 2FL 10A0 4005
480 2FL 10A0 4805
610 2FL 10A0 6105
700 2FL 10A0 7005
914 2FL 10A0 9145
1 000 2FL 10A1 0005

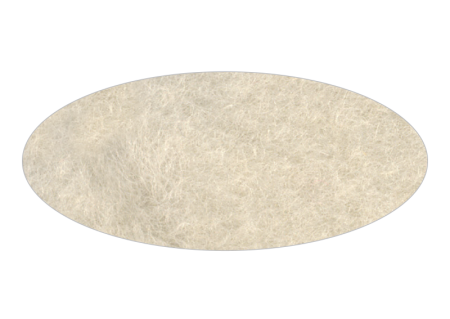

TOUCHLAM® polishing cloths 2FL2

 Box of 5 pieces
 Characteristics
Ø in mm Ref.

Wool felt, extra flexible.
Finishing of plastics and glasses.
High durability.
Commonly used with AQUA LAM® cerium oxide.

381 2FL 20A0 3815
400 2FL 20A0 4005
480 2FL 20A0 4805
610 2FL 20A0 6105
700 2FL 20A0 7005
914 2FL 20A0 9145
1 000 2FL 20A1 0005

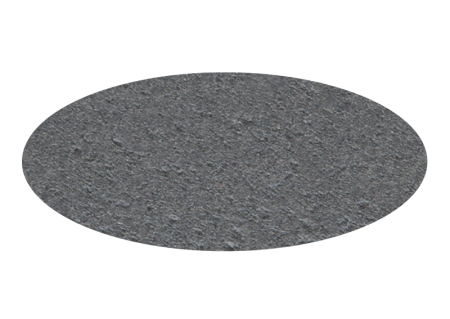

TOUCHLAM® polishing cloths 2MS1

 Box of 5 pieces
 Characteristics
Ø in mm Ref.

Foam.
Finishing, on soft and medium-hard materials.
Moulds to the shape of the part to be polished.
Commonly used with ECOA® abrasive slurries.

381 2MS 10A0 3815
400 2MS 10A0 4005
480 2MS 10A0 4805
610 2MS 10A0 6105
700 2MS 10A0 7005
914 2MS 10A0 9145
1 000 2MS 10A1 0005

TOUCHLAM® polishing cloths 3

TOUCHLAM® polishing cloths 3FP1

 Box of 5 pieces
 Characteristics
Ø in mm Ref.

Flocked polyester fibres.
Finishing of organic and mineral glasses.
Very resistant.
Commonly used with AQUA LAM® oxides.

381 3FP 10A0 3815
400 3FP 10A0 4005
480 3FP 10A0 4805
610 3FP 10A0 6105
700 3FP 10A0 7005
914 3FP 10A0 9145
1 000 3FP 10A1 0005

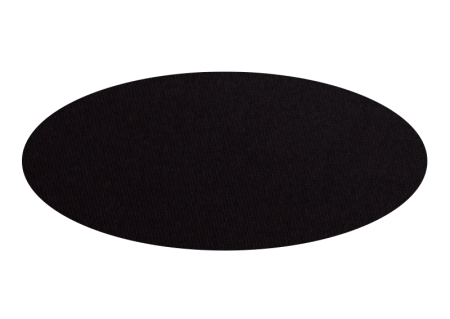

TOUCHLAM® polishing cloths 3SE2

 Box of 5 pieces
 Characteristics
Ø in mm Ref.

High-resistance synthetic silk fibres.
Superfinishing of medium hard and soft materials.
Excellent inherent flatness.
Commonly used with NEOLAP® diamond slurries.

381 3SE 20A0 3815
400 3SE 20A0 4005
480 3SE 20A0 4805
610 3SE 20A0 6105
700 3SE 20A0 7005
914 3SE 20A0 9145
1 000 3SE 20A1 0005

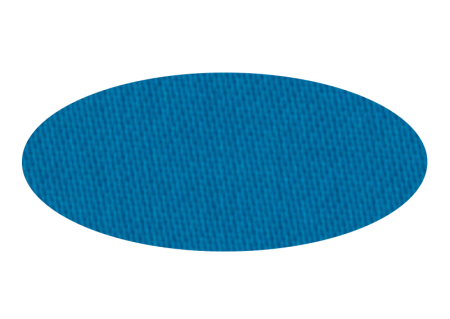

TOUCHLAM® polishing cloths 3SA2

 Box of 5 pieces
 Characteristics
Ø in mm Ref.

Synthetic silk fibres.
Superfinishing of all types of materials.
Excellent inherent flatness.
Commonly used with NEOLAP® diamond slurries.

381 3SA 20A0 3815
400 3SA 20A0 4005
480 3SA 20A0 4805
610 3SA 20A0 6105
700 3SA 20A0 7005
914 3SA 20A0 9145
1 000 3SA 20A1 0005

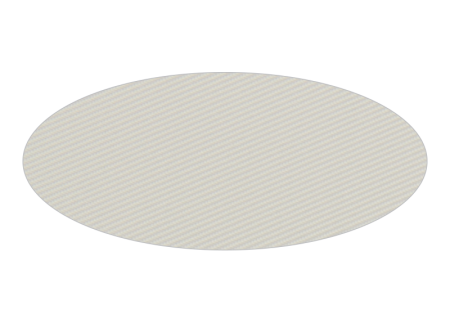

TOUCHLAM® polishing cloths 3SA4

 Box of 5 pieces
 Characteristics
Ø in mm Ref.

Composite synthetic fibres.
Super finishing of soft materials.
Good inherent flatness.
Commonly used with NEOLAP® diamond slurries.

381 3SA 40A0 3815
400 3SA 40A0 4005
480 3SA 40A0 4805
610 3SA 40A0 6105
700 3SA 40A0 7005
914 3SA 40A0 9145
1 000 3SA 40A1 0005

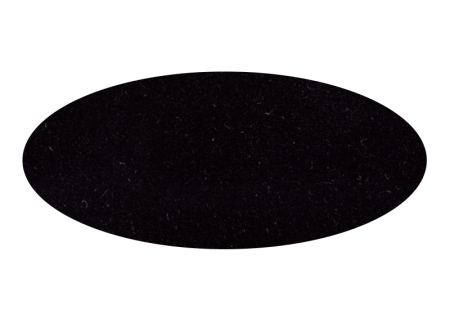

TOUCHLAM® polishing cloths 3FV1

 Box of 5 pieces
 Characteristics
Ø in mm Ref.

Semi-hard flocked short viscose fibres.
Super finishing of hard materials.
Commonly used with NEOLAP® diamond slurries.

381 3FV 10A0 3815
400 3FV 10A0 4005
480 3FV 10A0 4805
610 3FV 10A0 6105
700 3FV 10A0 7005
914 3FV 10A0 9145
1 000 3FV 10A1 0005

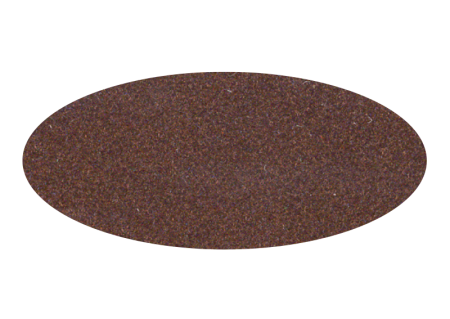

TOUCHLAM® polishing cloths 3FV2

 Box of 5 pieces
 Characteristics
Ø in mm Ref.

Flocked short viscose fibres.
Super finishing of all materials.
Resistant to agressive abrasive.
Commonly used with NEOLAP® diamond slurries
and AQUA LAM® oxides.

381 3FV 20A0 3815
400 3FV 20A0 4005
480 3FV 20A0 4805
610 3FV 20A0 6105
700 3FV 20A0 7005
914 3FV 20A0 9145
1 000 3FV 20A1 0005

TOUCHLAM® polishing cloths 4

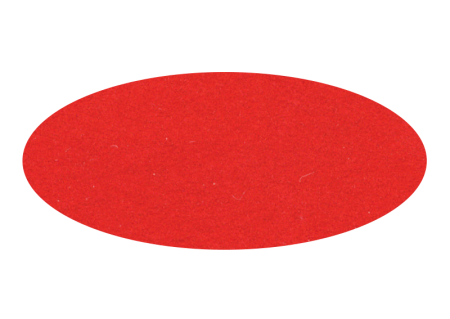

TOUCHLAM® polishing cloths 4FV3

 Box of 5 pieces
 Characteristics
Ø in mm Ref.

Soft flocked long viscose fibres.
Super finishing of all materials, even very soft.
Used with NEOLAP® diamond slurries
and AQUA LAM® oxides.

381 4FV 30A0 3815
400 4FV 30A0 4005
480 4FV 30A0 4805
610 4FV 30A0 6105
700 4FV 30A0 7005
914 4FV 30A0 9145
1 000 4FV 30A1 0005

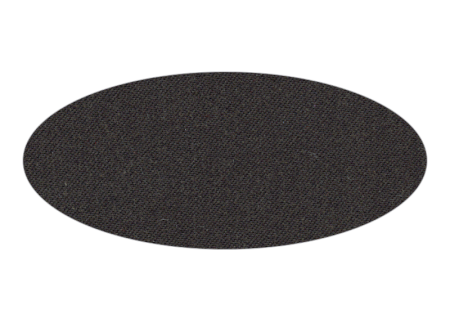

TOUCHLAM® polishing cloths 4MP2

 Box of 5 pieces
 Characteristics
Ø in mm Ref.

Microporous polyurethane foam.
Extreme super finishing of all materials
(chemical polishing).
High durability.
Commonly used with colloidal silica AQUA LAM® oxides and ECOA® abrasive slurries.

381 4MP 20A0 3815
400 4MP 20A0 4005
480 4MP 20A0 4805
610 4MP 20A0 6105
700 4MP 20A0 7005
914 4MP 20A0 9145

Guidance

Tailor-made cutting

LAM PLAN masters the production of its polishing cloths. In order to facilitate the use and the application of polishing cloths on your supports, we are capable of providing our discs, already cut to your needs. The geometry of the polishing cloth or pad will correspond perfectly to your fixation support. The cutting quality will be perfect which will guarantee a high durability of your polishing cloth.

We can provide all geometric shapes as the petals illustrated just below. For double-side machines, we make the bore and the holes for the distribution of the abrasive on the superior plate.

Assistance & information

Contact us

Committed to providing you with quality answers, we invite you to send us a message with your contact details so that our staff can answer you as soon as possible.


Our social networks

lam plan société gaillard
With the support
La Région Auvergne Rhône-Alpes

Contact us

LAM PLAN S.A.S
7, rue des Jardins - B.P.15
74240 Gaillard - France
header-receiver +33 (0)4 50 43 96 30

Our dealers

All rights reserved © LAM PLAN S.A.S / Webmaster: Ctoutcom Studio
