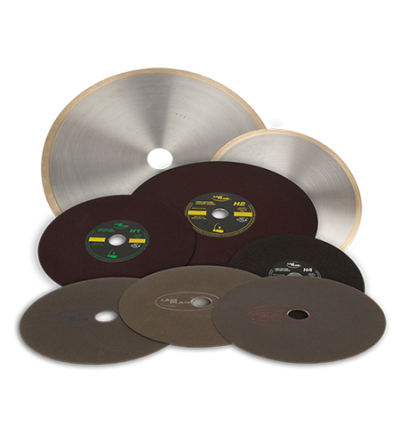

Our cut-off wheels

These wheels were elaborated according to a well-defined specification (high quality abrasive and binder), which allows attaining high cutting performances. Usable on all cut-off machines available on the market, these cut-off wheels allow attaining such a quality level that downstream polishing operations will be shortened.

Cut-off wheels Series H EXCELLENCE

lamplan metallographie disquesexcellence asavoir01

The new Excellence cut-off wheels offer faster cuttings without heating.

These wheels can be used at high speed and assure an excellent quality without causing any damages on the material structure.
The quality of their function guarantees a greater life expectancy and limit the vibrations while cutting.

Available in four versions, the cut-off wheels H1, H2, H3 and H4 will enable you to cut any metallic materials. In order to know what wheel is adequate to your need.

/ Please contact us for a diameter superior to 400 mm.

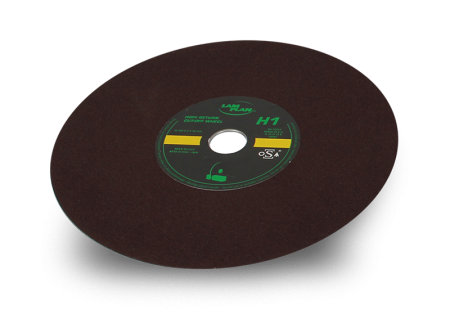

Cut-off wheels H1 EXCELLENCE (Al₂O₃)

Type	Dim. (mm)	Qty/box	Ref.
Soft/ semi-hard metals	250 x 32 x 1,5	10	05 83011 40
	300 x 32 x 2	10	05 83011 50
	350 x 32 x 2,5	10	05 83011 60
	400 x 32 x 3	10	05 83011 70

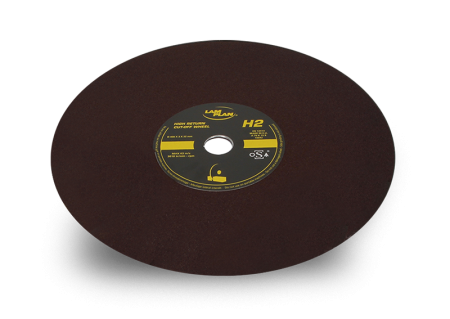

Cut-off wheels H2 EXCELLENCE (Al₂0₃)

Type	Dim. (mm)	Qty/box	Ref.
Treated metals Special metals	250 x 32 x 1,5	10	05 83021 40
	300 x 32 x 2	10	05 83021 50
	350 x 32 x 2,5	10	05 83021 60
	400 x 32 x 3	10	05 83021 70

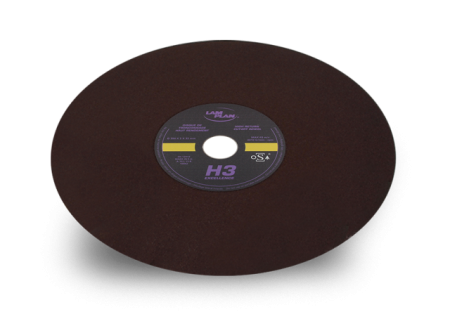

Cut-off wheels H3 EXCELLENCE (Al₂0₃)

Type	Dim. (mm)	Qty/box	Ref.
Inconel	250 x 32 x 1,5	10	05 84021 40
	300 x 32 x 2	10	05 84021 50
	350 x 32 x 2,5	10	05 84021 60
	400 x 32 x 3	10	05 84021 70

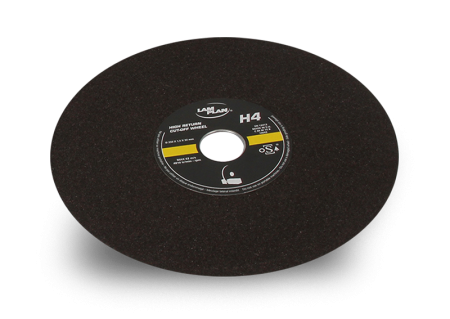

Cut-off wheels H4 EXCELLENCE (SIC)

Type	Dim. (mm)	Qty/box	Ref.
Non ferrous materials Casting	250 x 32 x 1,5	10	05 85041 40
	300 x 32 x 2	10	05 85041 50
	350 x 32 x 2,5	10	05 85041 60
	400 x 32 x 3	10	05 85041 70

Cut-off wheels PRECISION

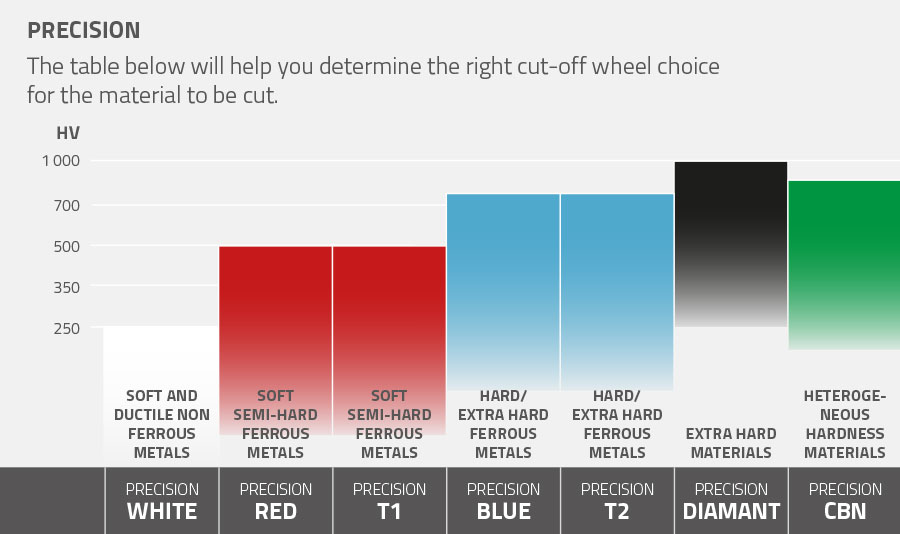

lamplan metallographie disquesprecision asavoir01

Combine performance and versatility

Elaborated according to a very rigorous specification, these cut-off wheels offer the user a precision cutting thanks to the characteristics of its binder and the quality of its abrasives.

Usable on all cutting machines, these wheels give cut-off quality which allows reducing the duration of the downstream operations.

LAM PLAN precision cut-off wheels are available in 6 versions according to their hardness and the abrasive used in their composition. The visual colour code facilitates memory.

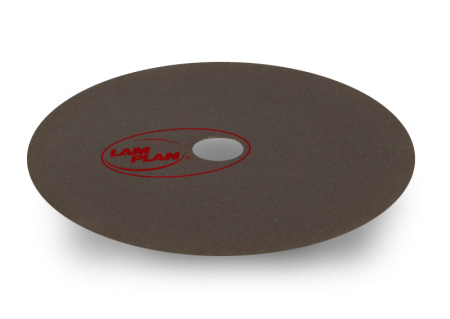

Cut-off wheels Red PRECISION (Al₂O₃)

Type	Dim. (mm)	Qty/box	Ref.
Soft – semi-hard steel	125 x 12,7 x 0,45	5	05 80016 90
Soft – semi-hard steel	150 x 12,7 x 0,45	5	05 80016 10

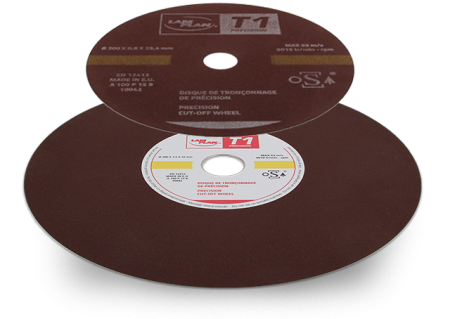

Cut-off wheels T1 PRECISION (Al₂O₃)

Type	Dim. (mm)	Qty/box	Ref.
Soft – semi-hard steel	200 x 25,4 x 0,8	10	05 911P02000
	250 x 32 x 1,2	10	05 911P42500
	300 x 32 x 1,5	10	05 911P43000

Cut-off wheels Blue (PRECISION Al₂O₃)

Type	Dim. (mm)	Qty/box	Ref.
Treated metals- special steel	125 x 12,7 x 0,45	5	05 80013 90
	150 x 12,7 x 0,45	5	05 80013 10
	203 x 25,4 x 1	10	05 80013 20

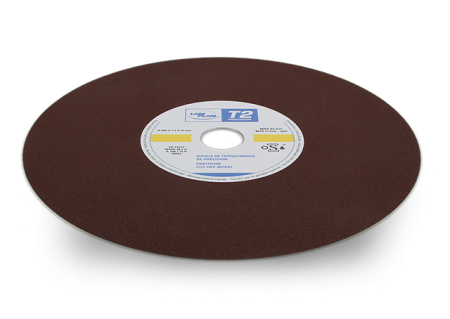

Cut-off wheels T2 (PRECISION Al₂O₃)

Type	Dim. (mm)	Qty/box	Ref.
Treated metals- special steel	250 x 32 x 1,2	10	05 921P42500
Treated metals- special steel	300 x 32 x 1,5	10	05 921P43000

Cut-off wheels White PRECISION (SIC)

Type	Dim. (mm)	Qty/bx	Ref.
Non ductile material Cast iron Stainless steel	125 x 12,7 x 0,45	5	05 80025 90
	150 x 12,7 x 0,45	5	05 80025 10
	203 x 25,4 x 1	10	05 80025 20
	250 x 32 x 1,5	10	05 80025 40
	305 x 32 x 1,5	10	05 80025 50

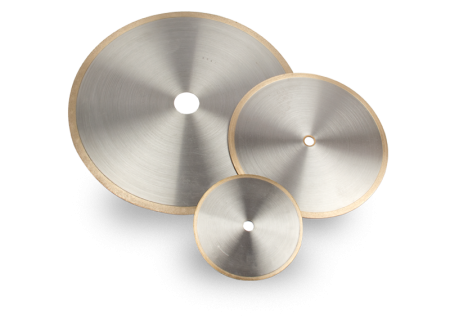

Cut-off wheels PRECISION DIAMANT

Type	Dim. (mm)	Qty/box	Ref.
All sintered materials. Ceramic, Cermet, Carbide W and Sic. Glass, silica, quartz. High metal content materials.	102 x 12,7 x 0,30	1	05 82129 10
	127 x 12,7 x 0,40	1	05 82129 20
	152 x 12,7 x 0,5	1	05 82129 30
	203 x 32 x 0,8	1	05 82130 30
	254 x 32 x 1	1	05 82335 40
	300 x 32 x 1,3	1	05 82335 50

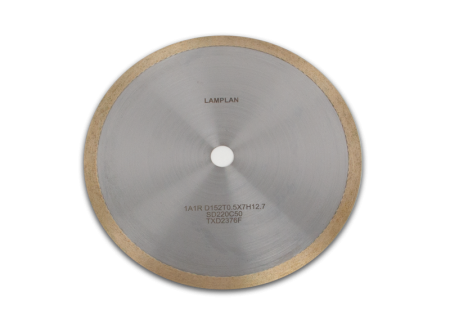

Cut-off wheels PRECISION CBN

Type	Dim. (mm)	Qty/box	Ref.
Heterogeneous hardness materials (ex. : carbide coating on, steel substrate)	152 x 12,7 x 0,38	1	05 82129130

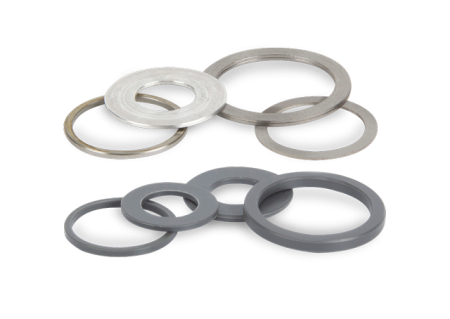

Adaptor rings for cut-off wheels

Adaptor rings

Designation	Ø mm	Qty	Ref.
Adaptor ring – PVC For cut-off wheels	22 / 12,7	5	60 00609 90
	25,4 / 12,7	5	60 00370 90
	25,4 / 22	5	60 00372 90
	32 / 25,4	5	60 00374 90
Adaptor ring – Steel For cut-off wheels	22 / 12,7	5	60 00608 90
	25,4 / 12,7	5	60 00369 90
	25,4 / 22	5	60 00371 90
	32 / 25,4	5	60 00373 90
