Laboratory precision micro cutting machine

micro cutting machine cutlam micro 2.0
2 cutting modes
  • Gravity cut with weight and counterweight
  • Manual cut
Z axis displacement

Lateral displacement of the sample by wheel, visualization of the distance on the touch screen

Control screen

3.5 inch touch screen
Intuitive graphic visuals

INTRODUCTION

CUTLAM®micro 2.0

Designed for precision cutting, its speed range and cutting chamber capacity make it a highly versatile machine.

  • Wheel Ø
    75 to 200 mm
  • Rotational speed
    from 200 to 4000 rpm
  • Max cutting capacity
    Ø50 mm
  • Dim. W x H x D
    430 x 300 x 450 mm

The sample is held in position using a vice-tightened holding arm and the wheel located outside the cutting chamber enables a micrometric movement along the Z axis; the movement can be tracked directly on the screen (accurate to 0,02 mm) Thanks to the zeroing system, very accurate parallel cuts can be performed.

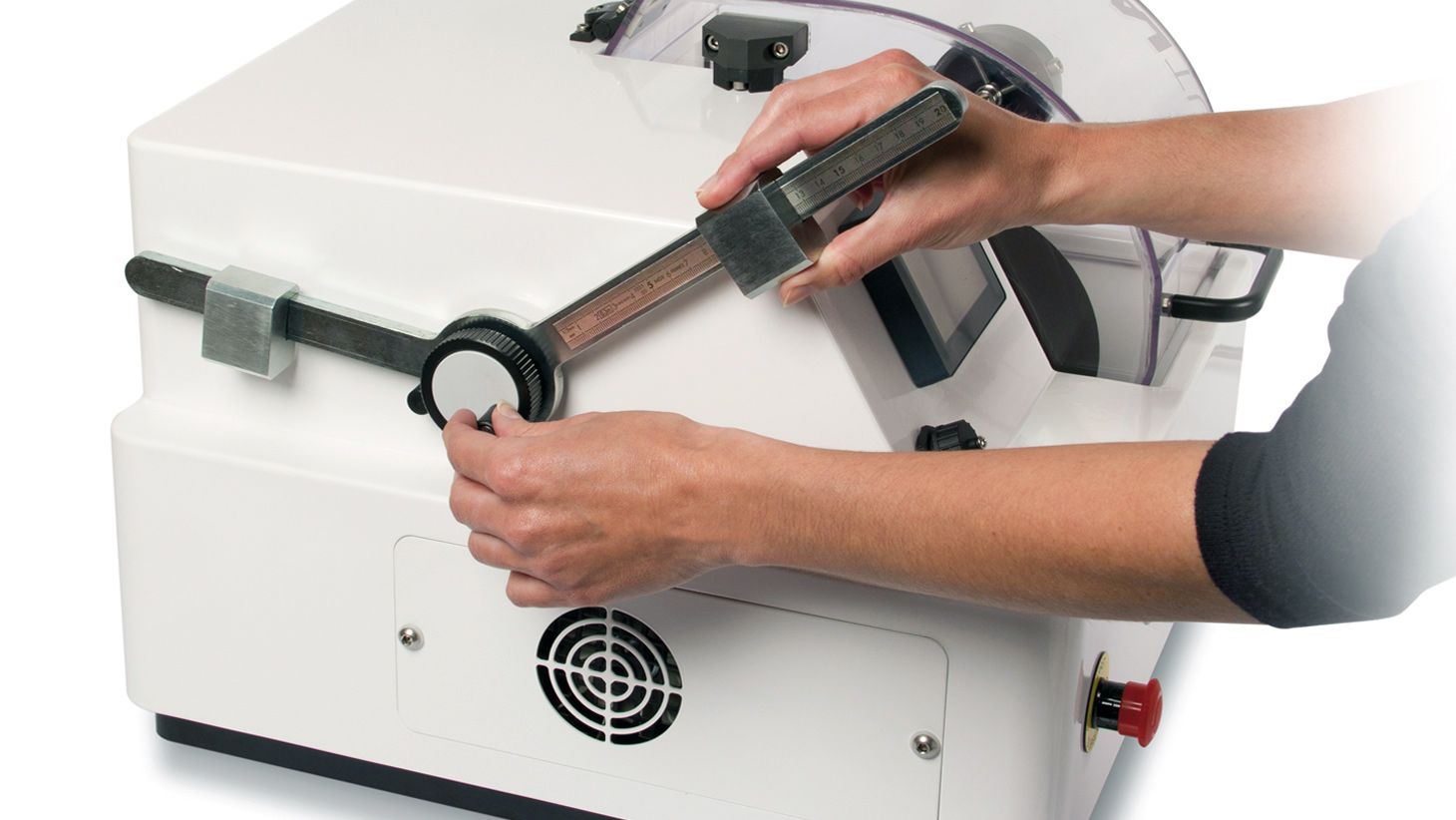

A wide range of vices is available, enabling you to clamp any type of component or material. The cutting progress is either controlled manually or with a counterweight system specially adapted to delicate cuts. A rocker arm balances the implement weight, and another one permits to adjust the applied load with precision.

Fitted with a large-capacity (10 litres, large for the machine’s size), independent filtration/decanting/recirculation tank, it is easy to perform long cuts under ideal cooling conditions.

The CUTLAM®micro 2.0 has been designed to simplify maintenance and cleaning operations, the base of the cutting chamber is equipped with an inlet filter to prevent the loss of small parts and components. A 100 µm fabric filter at the decanter inlet filters out the largest particles, and the remainder of the filtration is accomplished by decanting into a compartmented tank.

Built upon a robust, mechanically welded chassis sheathed with a painted sheet-steel body, the CUTLAM®micro 2.0 is particularly stable and is not prone to vibration, saving you valuable laboratory work space.

VIDEO & VISUALS

Design and advanced technology

Manual micrometric adjustment of the Z axis

10-litre settling tank with 100 µ filter

    Non-contractual images
    IN DETAIL

    Technical characteristics and equipment

    Ø 200 mm disc

    (Varies according to the vice used and the diameter of the disc).

    Included Equipment

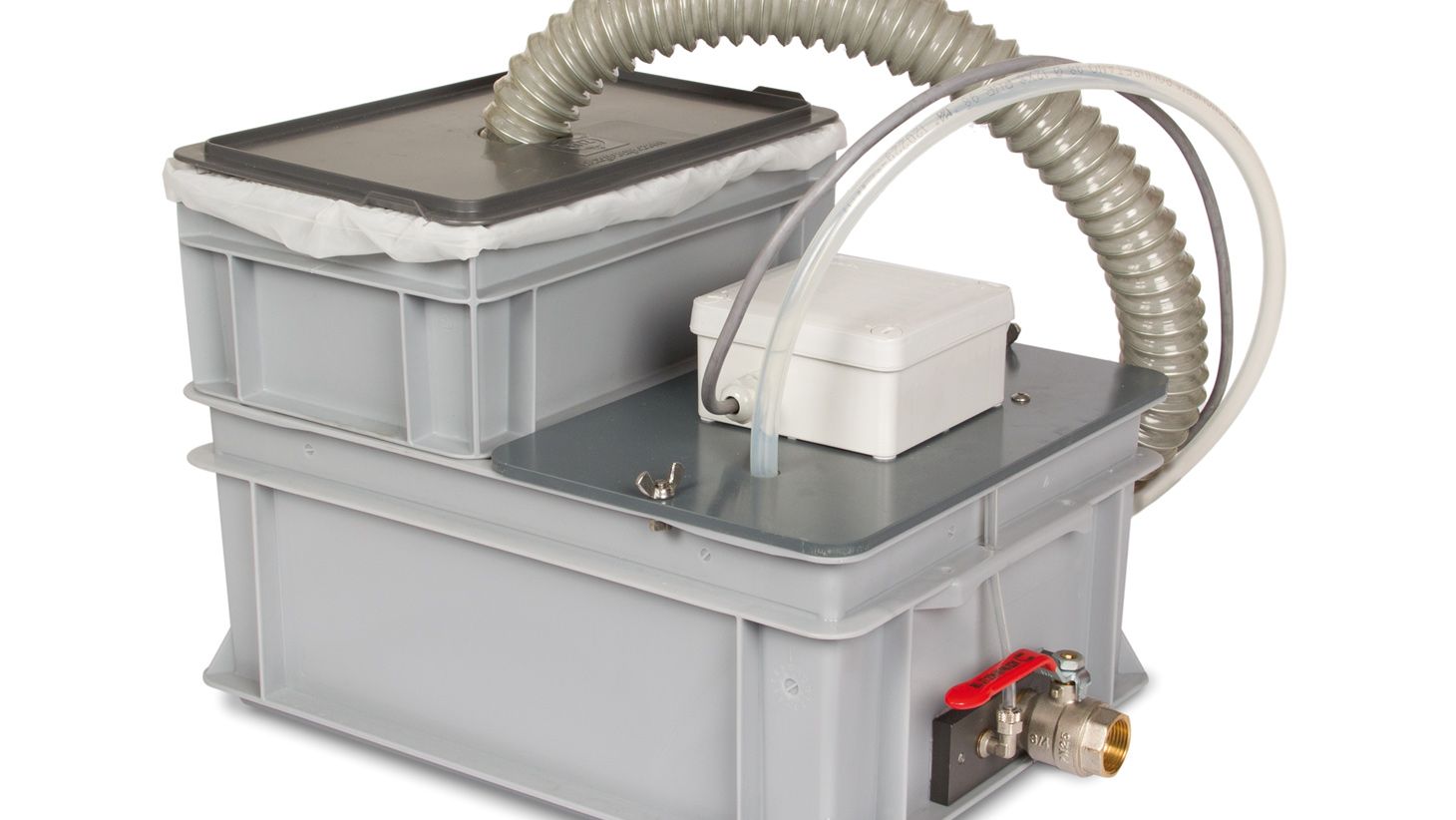

    • Recirculation system, 10 litres,
      2 compartment decantation tank,
      100 µ fabric filter,
      recirculation pumps 800 L/hour driven by the machine
    • Screw cylindrical sample holder: Ø 12 mm to 50 mm
    • Set of flanges: Ø 50 mm for cut-off wheel: Ø 125 to 150 mm

    Options

    • Slow speed 50 to 1000 rpm
      60 CTM 20 20
    • Vacuum system for holding thin sections
      60 CTM 03 80

    Downloads

    Technical data CUTLAM®micro 2.0

    Cut-off wheel Ø
    75 to 200 mm
    Shaft Ø
    12,7 mm
    Standard flanges Ø
    50 mm
    Lateral arm displacement (Z axis)
    Stroke 80 mm (accuracy 0,02 mm)
    Preload weight
    2 x 200 g
    Vertical movement
    Manual
    Lubrification
    Recirculation system, 10 litres, 2 compartment decantation tank, 100 µ fabric filter, recirculation pumps.
    800 L/hour driven by the machine.
    Motor power
    0,6 kW
    Rotational speed
    Variable, from 200 to 4000 rpm
    Protection
    Transparent cover with locking system
    Touch screen 3,5“
    Intuitive and graphic interface
    Voltage
    230 V – 50 Hz single phase
    Dim. W x H x D
    430 x 300 x 450 mm
    (H cover open: 644 mm)
    Weight
    40 kg
    Reference
    60 CTM20 00
    ACCESSORIES & OPTIONS

    Available accessories

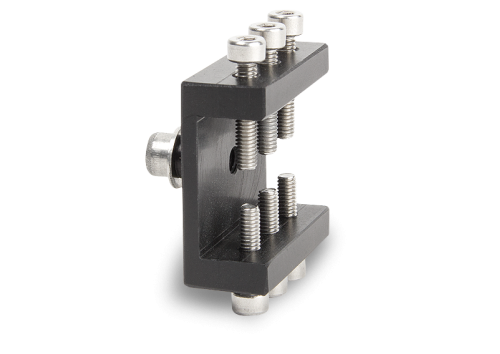

    Multi-screw sample holder for irregular parts
    60 CTM03 50

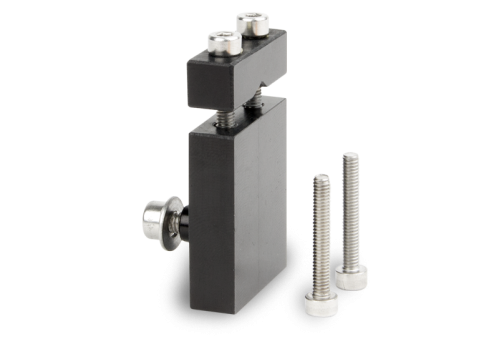

    Screw vice holder
    60 CTM03 30

    Ø 12 mm maxi

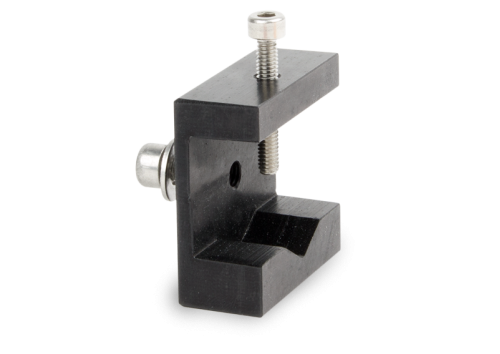

    Screw V-shape sample holder
    60 CTM03 20

    Ø 24 mm maxi

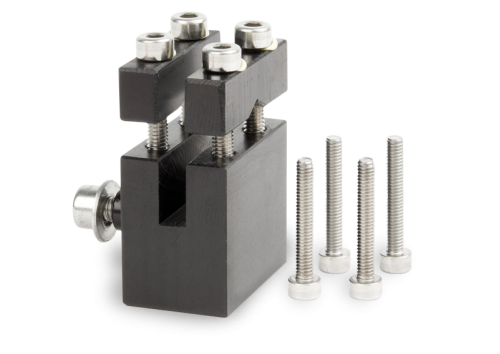

    Screw double vice sample holder
    60 CTM03 40

    Ø 12 mm max

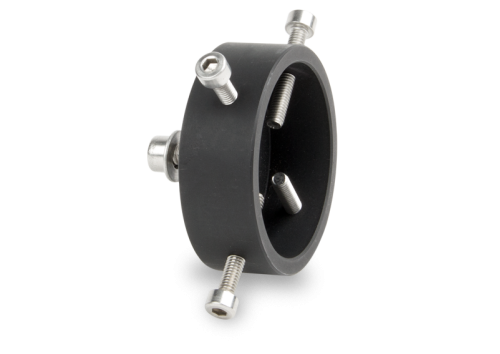

    Screw cylindrical sample holder
    60 CTM03 10

    Ø 12 mm to 50 mm

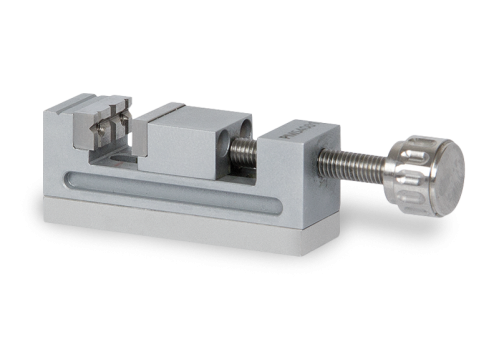

    Small vice with screw tightening system
    60 CTM02 10

    Stroke: 15 mm
    Jaws: W 15 x H 6,3 mm

    Medium vice with screw tightening system
    60 CTM021 10

    Stroke: 24 mm
    Jaws: W 25 x H 10 mm

    Set of flanges
    • Set of flanges Ø 35 mm for cut-off wheels Ø 75 to 100 mm – 60 CTM01 10
    • Set of flanges Ø 50 mm for cut-off wheels Ø 125 to 150 mm – 60 CTM01 20
    • Set of flanges Ø 75 mm cut-off wheels until Ø 200 mm – 60 CTM01 30

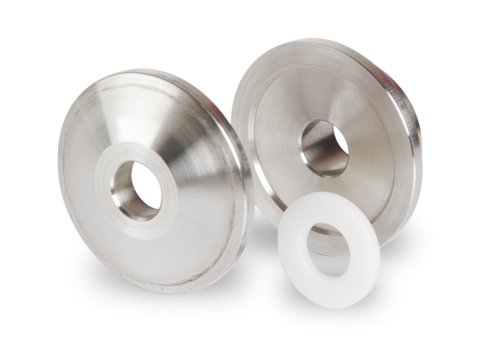

    Steel & PVC adaptor rings for cut-off wheels
    • Steel Ø 25,4 x 12,7 mm (5 units) – 60 00369 90
    • PVC Ø 25,4 x 12,7 mm (5 units) – 60 00370 90
