Cold mounting resins
Mainly intended for the metallography research sector, the LAM PLAN range of cold mounting resins offers many technical and economic advantages.
The cold mounting resins are the solution for samples which do not withstand high pressure or temperature. In addition, they allow responding in a simple and efficient way to timely needs by circumventing the investment of a hot mounting press. You can achieve a large quantity of samples simultaneously while adjusting precisely the volume of mounting material and shape of the moulds.

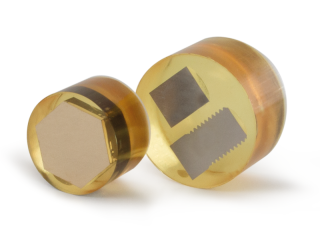

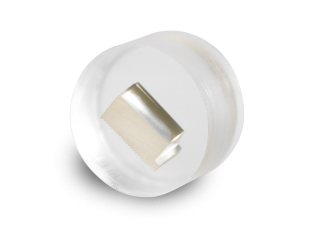

Acrylic cold mounting resin
613 Epoxy cold mounting resins
613 resins are hard, transparent, two-component epoxy resins used for high-quality technical metallographic mounting at room temperature.
613 resins have very low to zero shrinkage, excellent adhesion to all kinds of materials and very good chemical resistance. With their low viscosity, 613 resins are ideal for coating metallographic samples with complex shapes, porosities or delicate technical coatings.
They can be impregnated using the M.M.818 vacuum mounting unit. De-bubbling and shrinkage can also be improved by using the M.M.808 pressure mounting unit.
613 resins are CMR-free.

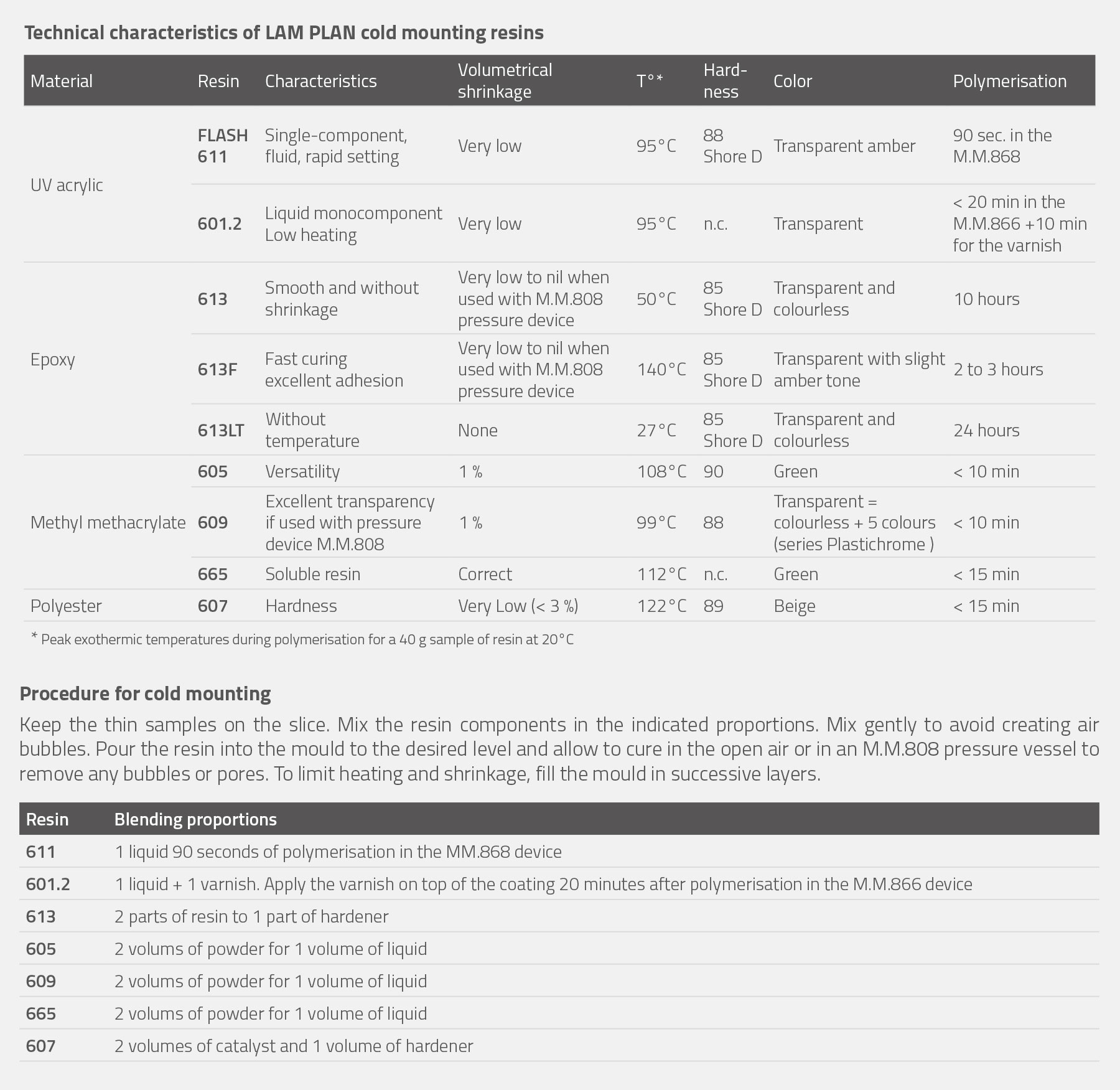

Technical specifications, see specifications table.

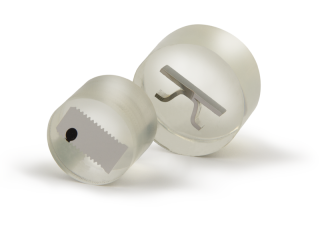

613 Epoxy resin
Smooth and without shrinkage
Multi-purpose resin with a limited exothermic temperature of 50°C* and a curing time of 10 hours.
| Characteristics |
Qty | Ref. | |
|
Transparent Epoxy 2 liquid components |
Liquid (1000 ml) + hardener (500 ml) set | 06 00613 00 | |
| Liquid (1000 ml) | 06 02613 00 | ||
| Hardener (500 ml) | 06 01613 00 | ||

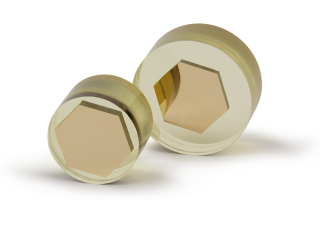

613F Epoxy resin
Fast curing excellent adhesion
613F is a fast-curing epoxy resin, 2 to 3 hours. It should be used on materials that can withstand temperatures up to 140°C.
| Characteristics |
Qty | Ref. | |
|
Transparent Epoxy 2 liquid components |
Liquid (1000 ml) + hardener (500 ml) set | 06 00613F 00 | |
| Liquid (1000 ml) | 06 02613F 00 | ||
| Hardener (500 ml) | 06 01613F 00 | ||

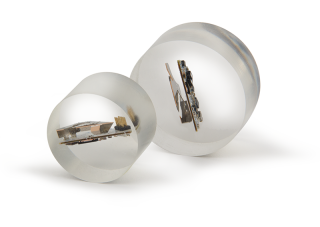

613LT Epoxy resin
Without temperature
613LT is an epoxy resin which cures without temperature rise. It is recommended in cases where samples would be degraded by heating during polymerization.
| Characteristics |
Qty | Ref. | |
|
Transparent Epoxy 2 liquid components |
Liquid (1000 ml) + hardener (500 ml) set | 06 00613LT 00 | |
| Liquid (1000 ml) | 06 02613LT 00 | ||
| Hardener (500 ml) | 06 01613LT 00 | ||
Methyl-methacrylate cold mounting resins

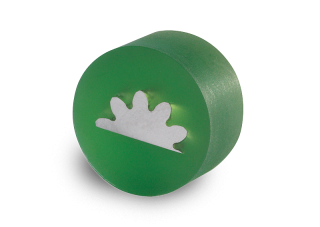

605 Methyl-methacrylate resin
Versatile, it is adapted to the majority of common materials for the fast mounting standard sample. It is possible to change the viscosity by modifying the proportion of the mixture: liquid + powder. Resistant to the principal acids used in laboratories.
Solvent free and CMR-free (no Carcinogenic, Mutagenic, toxic to Reproduction susptences).
| Characteristics |
Qty | Ref. | |
|
Green Methyl-methacrylate |
Powder (1 kg) + catalyst (500 ml) set | 06 00605 00 | |
| Catalyst (500 ml) | 06 00615 00 | ||
| Powder (10 kg) + catalyst (5 litres) set | 06 00605 10 | ||
| Catalyst (5 litres: pack. 2 x 2,5 litres)* | 06 00615 10 | ||
* Packaging related to transport restrictions

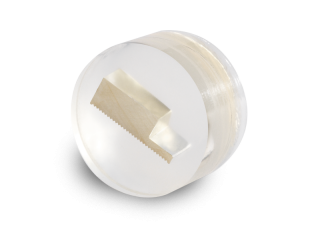

609 Methyl-methacrylate resin
A perfectly transparent resin used for precision parts, notably those of the electrical or electronics industry. It renders the sample perfectly visible, which allows analysing precise points. It must be used with the pneumatic device M.M.808 to obtain an optimum transparency.
Solvent free and CMR-free (no Carcinogenic, Mutagenic, toxic to Reproduction susptences).
| Characteristics |
Qty | Ref. | |
|
Methyl-methacrylate |
Powder (1 kg) + catalyst (500 ml) set | 06 00609 00 | |
| Catalyst (500 ml) | 06 00619 00 | ||
| Powder 1 kg | 06 00609 20 | ||
| Powder (10 kg) + catalyst (5 litres) set | 06 00609 10 | ||
| Catalyst (5 litres : pack. 2 x 2,5 litres)* | 06 00619 10 | ||
* Packaging related to transport restrictions
609 Plastichrome Methyl-methacrylate resin
The methyl-methacrylate resin 609 is available in the Plastichrome version – 5 transparent colours to simplify the classification of samples.
Solvent free and CMR-free (no Carcinogenic, Mutagenic, toxic to Reproduction susptences).
| Characteristics |
Qty | Colors | Ref. |
|
Methyl-methacrylate |
Powder (1 kg) + Catalyst (500 ml) set |
BLUE | 06 0071B 00 |
| YELLOW | 06 0071J 00 |
||
| ORANGE | 06 0071O 00 |
||
| RED | 06 0071R 00 |
||
| GREEN | 06 0071V 00 |

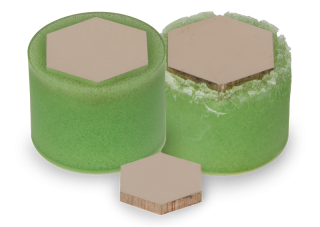

665 Methyl-methacrylate resin
Cold setting resin for sample recovery.
Mounting is a step in metallographic sample preparation which enables samples to be ground and polished more ergonomically. Embedding the sample in a resin is usually irreversible and recovering the sample (if necessary) after embedding proves almost impossible.
Resin 665 is a cold mounting resin that has the unique ability to dissolve in acetone. This ability is transformed into a sustainable functionality to recover metallographic specimens after mounting. After metallographic processing of costly materials such as noble metals, it is often important from an economic an technical perspective to recover the samples from the mounting resin.
| Characteristics |
Qty | Ref. | |
|
Green soluble Methyl-methacrylate |
Powder (1 kg) + catalyst (500 ml) set | 06 00665 00 | |
| Catalyst (500 ml) | 06 02665 00 | ||
| Powder (1 kg) | 06 01665 00 | ||

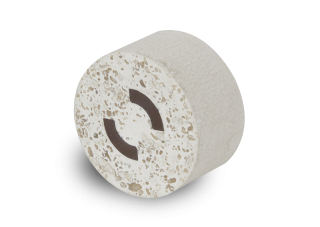

Polyester cold mounting resins
