Bio DIAMANT®
sticks & pastes

Bio DIAMANT® sticks series 122-123P & Bio DIAMANT® pastes serie 100

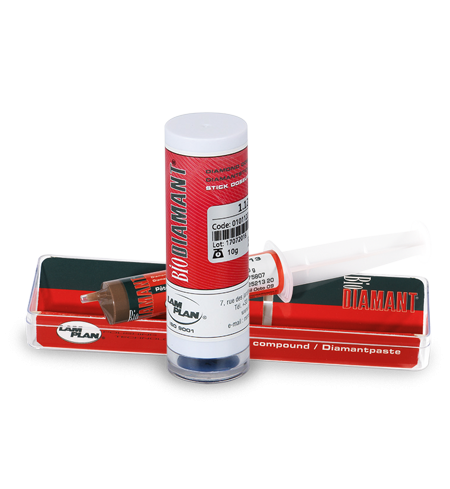

Bio DIAMANT sticks & pastes

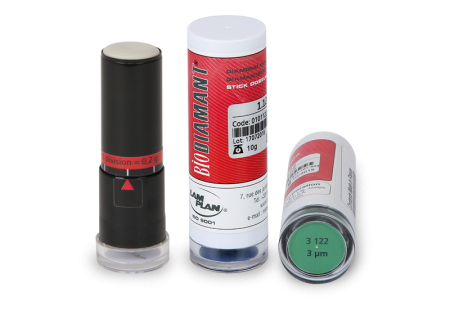

Bio DIAMANT® Sticks

For manual use and control of consumption

The diamond paste is distributed according to a precise dosage thanks to a drum graduated every 0.2 g. The diamond paste is repetitively loaded on the polishing cloth without any contact with fingers. The pastes and sticks are used with 702 and 704 type lubricants. The product’s colour marking facilitates its identification.

Indicative quantities necessary to load a new cloth
    Cloth Ø mm
150 200 250 300 400
Woven 0,2 g 0,2 g 0,4 g 0,4 g 0,6 g
Flocked 0,3 g 0,4 g 0,5 g 0,6 g 0,7 g

Bio DIAMANT® Stick series 122

The dosing sticks series 122 are composed of a monocrystalline diamond paste.

  • 10 g
  • Monocrystalline diamond
  • Consumption control
  • Easy distribution
  • Coloration by grain size
  • Water or alcohol cleaning
  • Strong concentration

  Types µm Ref.
    025 122 1/4 01 97122 00
    1 122 1 01 01122 00
    3 122 3 01 03122 00
    6 122 6 01 06122 00
    9 122 9 01 09122 00
    15 122 15  01 15122 00

Bio DIAMANT® Stick series 123P

The dosing stick series 123P are composed of a polycrystalline diamond paste.

  • 10 g
  • Polycrystalline diamond
  • Consumption control
  • Easy distribution
  • Water or alcohol cleaning
  • Strong centration

  Types µm Ref.
    025 123P 1/4 01 97123 00
    1 123P 1 01 01123 00
    3 123P 3 01 03123 00
    6 123P 6 01 06123 00
    9 123P 9 01 09123 00
    15 123P 15  01 15123 00

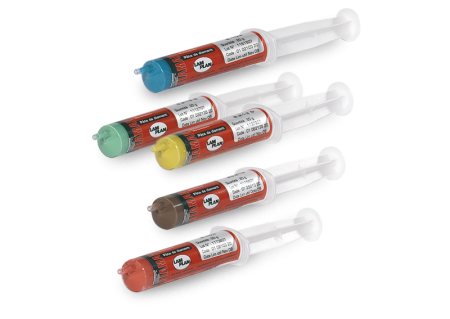

Bio DIAMANT® Pastes

Unique abrasive compounds

Designed for all grinding and polishing work, the Bio DIAMANT® Pastes contain a diamond powder free of any impurity, guaranteeing its cutting power. The perfectly calibrated grains are uniformly suspended in chemically pure ingredients. A formulation which provides a more uniform and more fluid abrasive film which allows an immediate abrasion of the part to be polished. The concentration of the pastes has a direct effect on the polishing’s execution rate: a high concentration is the guarantee of a high yield.

Bio DIAMANT® Pastes series 100

  • 10 g
  • Monocrystalline diamond
  • For all materials
  • Coloration by grain size
  • Easy cleaning with water or alcohol
    Strong concentration
  Types µm Ref.
    010 103 1/10 01 99103 00
    025 103 1/4  01 97103 00
    1 103 1 01 01103 00
    2 103 2  01 02103 00
    3 103 3 01 03103 00
    6 103 6 01 06103 00
    8 103 8 01 08103 00
    14 103 14  01 14103 00



    Very strong concentration
  Types µm Ref.
    1 105 1 01 01105 00
    2 105 2  01 02105 00
    3 105 3 01 03105 00
    6 105 6 01 06105 00
    8 105 8 01 08105 00
    14 105 14  01 14105 00
