Automatic polishing machine with central pressure, oscillating head and stock removal control

Powerful central-pressure head

Bidirectional rotation, variable speed and pressure.

5.7” touch screen

User friendly interface.

Memorization of programs, integrating up to 8 steps.

  • Ø Plate Capacity
    250 to 300 mm
  • Plate rotation speed
    20 to 650 rpm
  • Capacity
    Sample size in central pressure 6 x Ø 40 mm
  • Programming
    60 storable programs
INTRODUCTION

MASTERLAM®1.0

Automatic, single-plate Ø 250 to 300 mm polishing machine with bidirectional rotation and variable speed.

Touch screen controls, intuitive and user friendly interface, MASTERLAM® machines are equipped with the best programming, parameter storage and export technologies. Control of the 4-circuit DISTRILAM® dosing unit directly integrated.

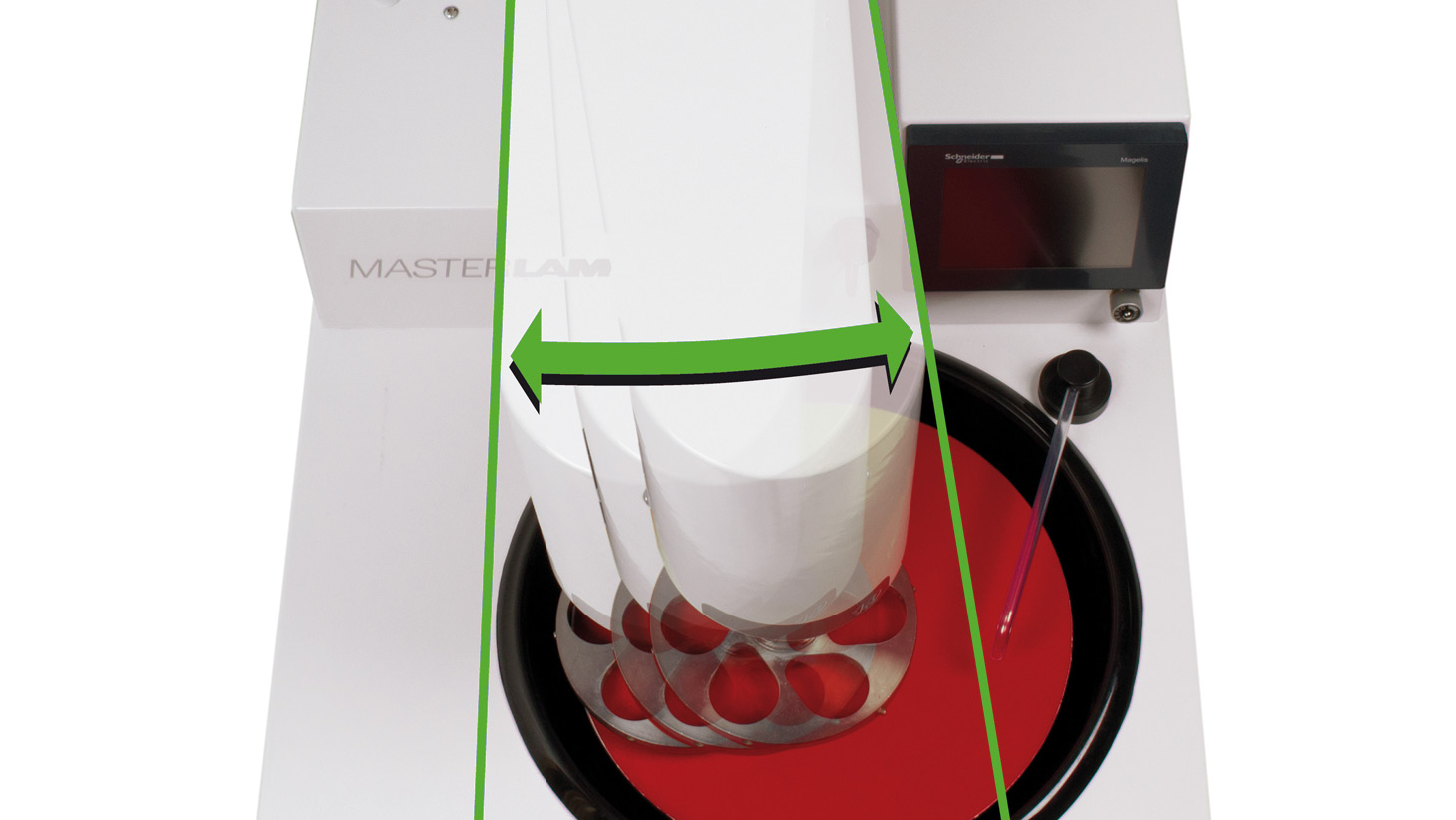

The MASTERLAM®1.0 is equipped with a powerful central-pressure head, bidirectional rotation, variable speed and pressure. The distinctive feature of this polishing head is the oscillation function with oscillation configurable both for amplitude and frequency.

The use of the oscillating head will allow you to achieve unrivalled levels of performance and versatility: it improves the quality of flatness, increases the stock removable and the service life of polishing supports (uniform wear due to the use of the entire surface of the plate.)

VIDEO & VISUALS

Design
and advanced technology

The MASTERLAM®1.0 is a high-performance machine intended for intensive use such as in-production inspections.

    Visuels non contractuels
    IN DETAIL

    Technical characteristics
    and equipment

    Options

    La MASTERLAM®1.0 with the oscillation* option, is particularly efficient for polishing large-sized samples and for superfinishing of mechanical components, prototypes or micro-series.

    A stock removal control system with an automatic “stop at measurement” function is also available (accurate to 0,02 mm).

    • Oscillation function
    • Stock removal control system

    Downloads

    Technical data MASTERLAM®1.0

    Plate capacity
    Ø 250 to 300 mm
    Body
    Steel coated with epoxy paint
    Bowl
    Removable, in resin, to ease cleaning
    Controls
    Touch screen (5,7“)
    Plate rotation speed
    Variable from 20 to 650 rpm
    Bidirectional rotation
    Head’s speed
    Variable from 10 to 150 rpm
    Bidirectional rotation
    Applicable load
    5 to 400 N central pressure
    Capacity
    Sample size in central pressure 6 x Ø 40 mm
    Head oscillation function
    Adjustable speed and amplitude (optional)
    Stock removal control function
    Stock removal measuring system with automatic stop, accurate to 0.02 mm (optional)
    Workspace lightening
    LED
    Water inlet
    Removable pipe, with flow rate adjustment and safety solenoid valve
    Programming
    60 storable programs, USB connector to backup programs and Ethernet port for networking
    Cumulative machine power
    1.1 kW
    Voltage
    230 V – 50 Hz single phase
    Pneumatic feed
    6 bars
    Dim. W x H x D
    550 x 670 x 670 mm
    Weight
    80 kg
    Reference
    60 ML100 00
    ACCESSORiES & OPTIONS

    Available accessories

    Dosing unit DISTRILAM®
    60 MLD00 00

    The automatic dosing unit DISTRILAM® is directly controlled via the touch screen on the machine through a RS 232 connector. It is instantly recognised by all the MASTERLAM® polishing devices as the control program is already programmed in the machines.

    Transparent protective housing
    60 MLEP0 00

    The secured housing is a totally transparent protection compatible with the full range of MASTERLAM®.

    Its opening stops all movements of the machine*, it offers an integral protection complying with the 2006/42/ CE and 2004/108/CE standards. The housing’s design preserves the accessibility of the plate and does not clutter the workspace.

    The touch screen is located outside of the secured zone; therefore, the commands are permanently accessible.

    For the MASTERLAM®1.0 and 3.0 the touch screen control panel is located on the right, a 195 mm space needs to be foreseen in addition to the machine width.

    *Le capot transparent sécurisé autorise toute fois la mise en rotation du plateau en mode manuel.

    Required space for the MASTERLAM®1.0, 2.0 and 3.0:
    Width 770 mm – Height 910 mm.

    Aluminium plates
    • Aluminium plate Ø 250 mm – 08 8270300
    • Aluminium plate Ø 300 mm – 08 8270400
    Metal clamping rings
    • Metal clamping ring for Ø 250 mm plate – 60 SL00490
    • Metal clamping ring for Ø 300 mm plate – 60 SL00690
    • Metal clamping ring for Ø 305 mm plate – 60 SL00790
    Tank reducer
    • Tank reducer Ø 250 mm – 60 ML08190
    Anti-splash ring
    60 ML08091
    CP samples holder
    • Ø 160 mm with 6 x Ø 20 to 40 mm water drop cells
      06MLC1000
    • Ø 160 mm with 9 x Ø 30 mm water drop cells
      06MLC3000
    • Ø 160 mm with 6 x Ø 40 mm water drop cells
      06MLC4000
    • Ø 160 mm with 5 x Ø 50 mm water drop cells
      06MLC5000
    • Ø 160 mm with 3 x rectangular 40 x 70 mm water drop cells
      06MLC1200
    • Ø 160 mm with 6 x rectangular 25 x 34 mm water drop cells
      06MLC1400
    Sample holder for irregular parts
    06 MLC60 00

    Ø 160 mm central pressure sample holder for eccentric restriction of non-embedded complex geometric parts.

    Filtering / decantation 60 L tank
    60 A0029 90
    Filtering / sedimentation 60 L tank + recirculation pump
    60 A0029 00

    With pump controlled by the machine.

    Visuels non contractuels

    Assistance & information

    Contact us
