Automatic polishing machine with central and individual pressure

Automatic polishing machine with central and individual pressure
5,7″ touch screen

User friendly interface.
Memorization of programs, integrating up to 8 steps.

Powerful central and individual pressure head

Sample holder with 6 holes.

INTRODUCTION

MASTERLAM®3.0

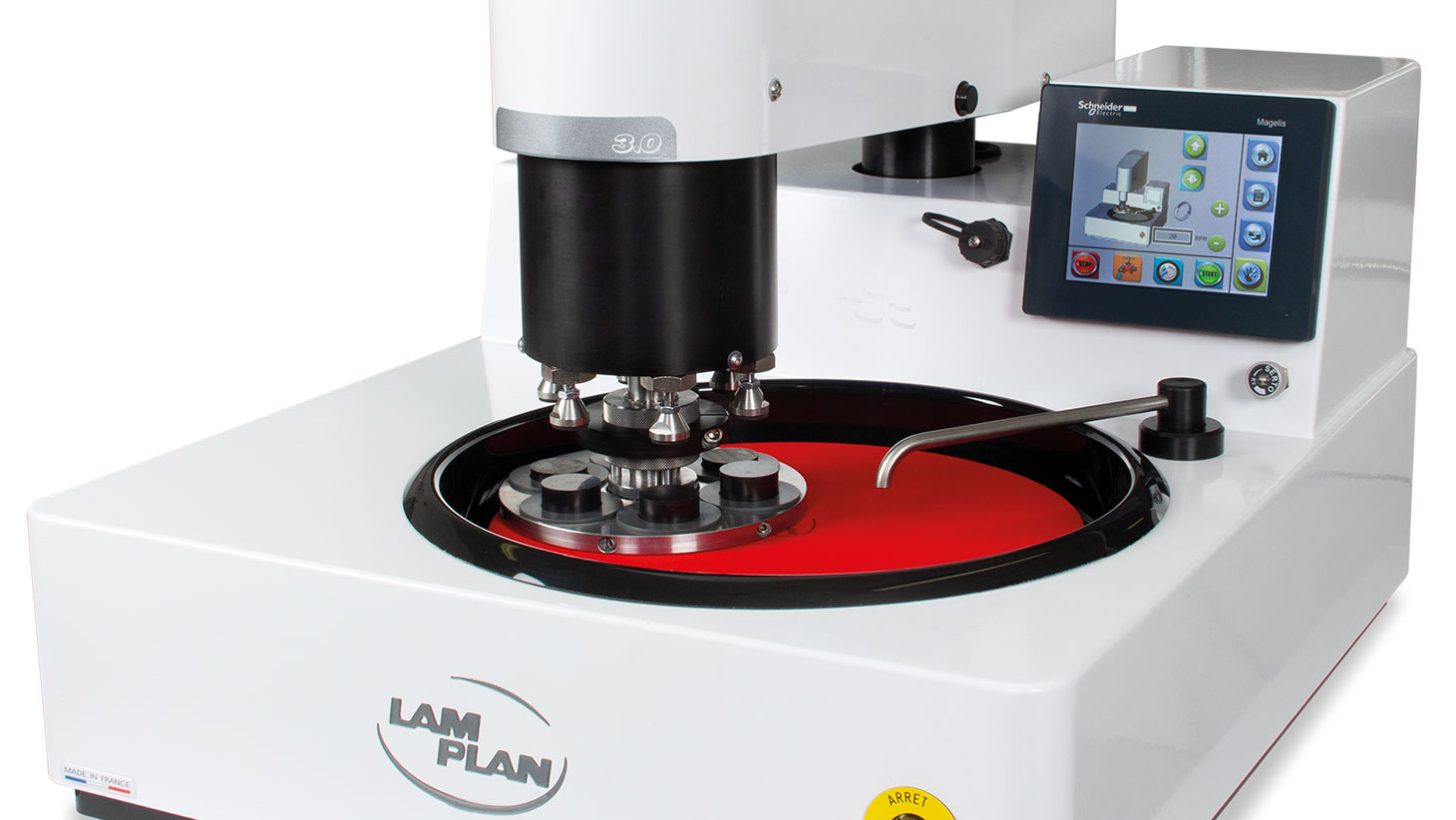

Automatic, single plate Ø 250 to 300 mm polishing machine, bidirectional rotation and variable speed.

  • Ø plate capacity
    250 to 300 mm
  • Plate rotation speed
    20 to 650 rpm
  • Capacity
    Sample size 6 X Ø 40 mm
    & 6 X Ø 50 mm
  • Programming
    60 storable programs

This machine has all the functions that make the MASTERLAM® range outstand and on this model a specific new combo-head.

The MASTERLAM®3.0 is the metallographic polishing machine without concession. Polishing can be carried out with central pressure or individual pressure and can be equipped with a stock removal measuring system.

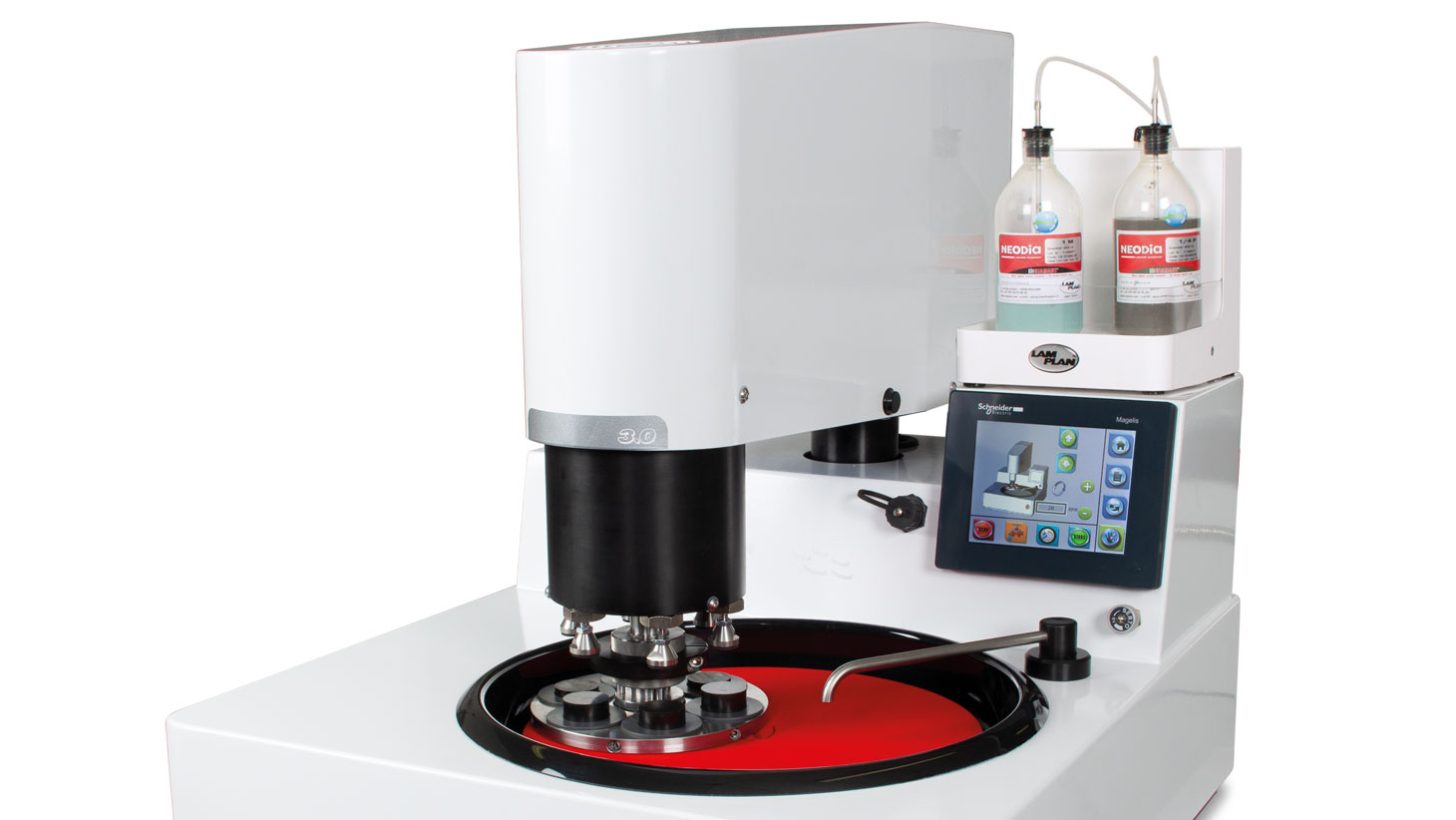

The MASTERLAM®3.0 is based on the same technology as the MASTERLAM®1.0 with, in this configuration, a powerful central and individual pressure head equipped with 6 pistons. Changing sample holders is quick and the pressure mode is controlled directly on the screen without having to touch the head, thus, you can switch from one pressure mode to another in a few seconds.

Central pressure mode

Individual pressure mode

VIDEO & VISUALS

Design and advanced technology

With dosing unit DISTRILAM® (4 circuits)
    Non-contractual wp-content/uploads
    IN DETAIL

    Technical characteristics and equipment

    Options

    • MASTERLAM®3.0 with material-removal control
      60 ML30S C0
    • MASTERLAM® 3.0 for PE 6 x Ø 60 mm
      60 ML30M 00

    Downloads

    Technical data MASTERLAM®3.0

    Plate capacity
    Ø 250 to 300 mm
    Body
    Steel coated with epoxy paint
    Bowl
    Removable resin bowl for easy cleaning
    Controls
    Touch screen (5,7“)
    Plate rotation speed
    Variable from 20 to 650 rpm
    Bidirectional rotation
    Head’s speed
    Variable from 10 to 150 rpm
    Bidirectional rotation
    Applicable load
    5 to 400 N central pressure
    5 to 100 N individual pressure
    Capacity
    Sample size 6 X Ø 40 mm
    Sample size 1 – 6 X Ø 50 mm
    Workspace lightening
    LED
    Water inlet
    Removable pipe, with flow rate adjustment and safety solenoid valve
    Programming
    60 storable programs, USB connector to backup programs and Ethernet port for networking
    Cumulative machine power
    1.1 kW
    Voltage
    230 V – 50 Hz single phase
    Pneumatic feed
    6 bars
    Dim. W x H x D
    550 x 670 x 580 mm
    Weight
    85 kg
    Reference
    60 ML300 00
    ACCESSORIES & OPTIONS

    Available accessories

    Outil de dressage Cameo disk®
    CAMEO® DISK Platinium grinding tool
    06 MLCA1 60

    For automatic polishing machines.

    DISTRILAM® Dosing unit
    60 MLD00 00

    The DISTRILAM® automatic dispenser is controlled directly from the machine screen via a connector. It is instantly recognised by all MASTERLAM® polishing machines. The dispenser is equipped with 4 independent circuits consisting of 3 standard peristaltic pumps for precise dosing of diamond liquids and 1 higher flow peristaltic pump for dosing lubricant or colloidal abrasive. It operates without compressed air or electrical connection. The DISTRILAM® automatic dispenser is an essential accessory for automated use of MASTERLAM®.

    This device guarantees reproducible work and economical use of consumables.

    Includes: dispenser, machine connection, 4-voice dispensing nozzle on magnetic base and 4 plastic bottles.

    Transparent secured housing for MASTERLAM®
    60 MLEP0 00

    The secured housing is a totally transparent protection compatible with the full range of MASTERLAM®. Its opening stops all movements of the machine*, it offers
    an integral protection complying with the 2006/42/ CE and 2004/108/CE standards. The housing’s design preserves the accessibility of the plate and does not clutter the workspace. The touch screen is located outside of the secured zone; therefore, the commands are permanently accessible. For the MASTERLAM®1.0 and 3.0 the touch screen control panel is located on the right, a 195 mm space needs to be foreseen in addition to the machine width.

    *However, the transparent secured housing authorises the plate rotation in the manual mode.

    Required space for the MASTERLAM®1.0, 2.0 and 3.0:
    Width 770 mm – Height 910 mm

    Aluminium plates
    • Aluminium plate Ø 250 mm – 08 82703 00
    • Aluminium plate Ø 300 mm – 08 82704 00
    Metal clamping rings
    • Metal clamping ring Ø 250 mm – 60 SL004 90
    • Metal clamping ring Ø 300 mm – 60 SL006 90
    • Metal clamping ring Ø 305 mm – 60 SL007 90
    Tank reducers
    • Tank reducer Ø 230 mm – 60 ML082 90
    • Tank reducer Ø 250 mm – 60 ML081 90
    Anti-splash ring
    60 ML080 91
    Reducer rings
    • Kit 6 x Ø 40 mm reducer rings – 06 MLIK5 00
    • Kit 6 x Ø 30 mm reducer rings – 06 MLIK2 00
    • Kit 6 x Ø 25,4 mm reducer rings – 06 MLIK1 10
    • Kit 6 x 1-1/4″ reducer rings – 06 MLIK3 10
    • Kit 6 x 1-1/2″ reducer rings – 06 MLIK4 10
    Sample holder central pressure
    Sample holders central pressure with water drop cells
    • CP Ø 160 mm with 6 x Ø 20 to 40 mm water drop cells – 06 MLC10 00
    • CP Ø 160 mmwith 9 x Ø 30 mm water drop cells – 06 MLC30 00
    • CP Ø 160 mm with 6 x Ø 40 mm water drop cells – 06 MLC40 00
    • CP Ø 160 mm with 5 x Ø 50 mm water drop cells – 06 MLC50 00
    Sample holders central pressure with rectangular cells
    Sample holders central pressure with rectangular cells
    • CP Ø 160 mm with 3 x rectangular 40 x 70 mm water drop cells – 06 MLC12 00
    • CP Ø 160 mm with 6 x rectangular 25 x 34 mm water drop cells – 06 MLC14 00
    Sample holder individual pressure
    Sample holder individual pressure
    06 MLI10 00
    • IP Ø 160 mm with 6 x Ø 50 mm water drop cells – 06 MLI10 00
    • IP Ø 160 mm with 6 x Ø 40 mm water drop cells – 06 MLI102 10
    Sample holder for irregular parts
    06 MLC60 00

    Ø 160 mm central pressure sample holder for eccentric restriction of non-embedded complex geometric parts.

    Levelling plate for CP sample holder
    06 MLP01 00

    Ø 160 mm – 3 mm depth

    Filtering / sedimentation 60 L tanks
    • Filtering / sedimentation 60 L tank  – 60 A0029 90
    • Filtering / sedimentation 60 L tank with recirculation pump – 60 A0029 00
